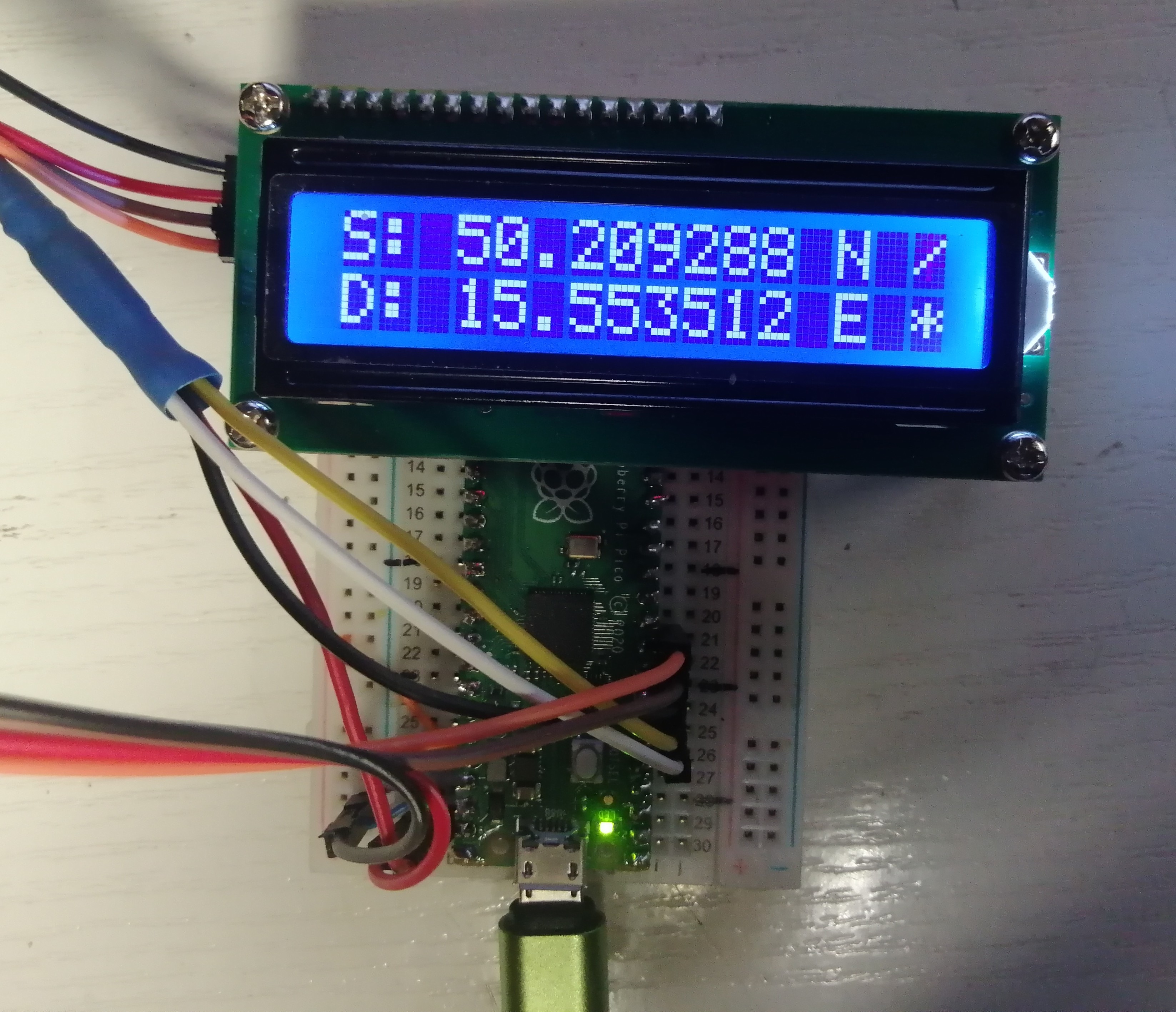

Jednoduchá navigace s RPi Pico a Waveshare L76K modulem

/* navigace5.c
 * (c) Jirka Chráska 2025; <jirka@lixis.cz>

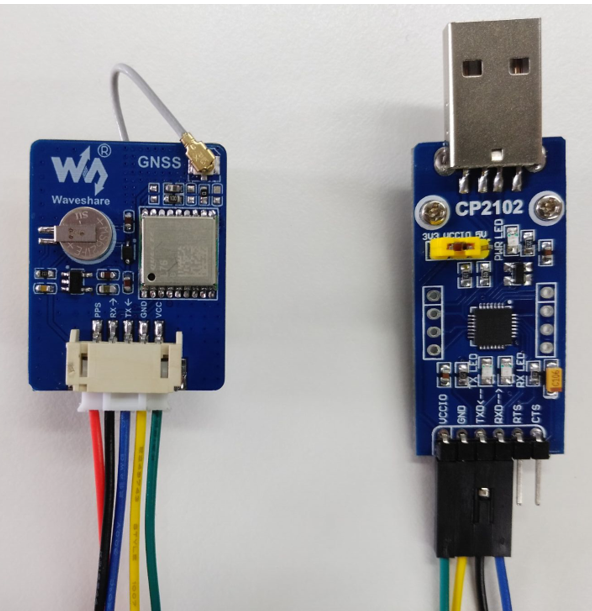

 * Testovani navigacniho modulu L76K. https://www.waveshare.com/wiki/L76K_GPS_Module
 * Modul musí být napájen z 5V, jinak funguje blbě.
 * Test v kanceláři:
 */
#define VYVOJ 0

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "pico/stdlib.h"
#include "hardware/uart.h"
#include "hardware/rtc.h"
#include "pico/util/datetime.h"
#include "lcd_czech_chars.h"

#define UART_ID         uart1
#define BAUD_RATE       9600
#define DATA_BITS       8
#define STOP_BITS       1
#define PARITY          UART_PARITY_NONE
#define UART_TX_PIN     4
#define UART_RX_PIN     5

#define BUFLEN 128

#define LED_PIN 25

// parsování věty $GNZDA,155647.000,19,10,2025,00
// tady mi to nikdy nevrátí korektní checksum
// informace o času
typedef struct {
        int year;
        int month;
        int day;
        int dotw;   // pořadí dne v týdnu 0 je neděle
        int hour;
        int min;
        int sec;
        int msec;
        int parse_ok;
} GNZDA;
/* Indexy */
#define NMEA_GNZDA_TIME                 1
#define NMEA_GNZDA_DAY                  2
#define NMEA_GNZDA_MONTH                3
#define NMEA_GNZDA_YEAR                 4
#define NMEA_GNZDA_DAYOFWEEK            5

GNZDA nmea_gnzda( char *data, int len )
{
GNZDA result = {0, 0, 0, 0, 0, 0, 0};
int section = 0;
char *str1;
char *saveptr1;
char *token;
char buf[10];

    for(section=0, str1 = data ; section<=5; section++, str1=NULL) {
        token = strtok_r(str1,",",&saveptr1);
        if( token == NULL ) {
            break;
            }
        switch ( section ) {
            case 0: // nazev
                if( strcmp(token,"$GNZDA") == 0 ) { result.parse_ok=1; }
                break;
            case NMEA_GNZDA_TIME: // cas
                buf[0] = token[0]; buf[1]=token[1]; buf[2] = '\0';
                result.hour = atoi(buf);
                buf[0] = token[2]; buf[1]=token[3]; buf[2] = '\0';
                result.min = atoi(buf);
                buf[0] = token[4]; buf[1]=token[5]; buf[2] = '\0';
                result.sec = atoi(buf);
                result.msec = atoi(&token[7]);
                result.parse_ok++;
                break;
            case NMEA_GNZDA_DAY: // den v měsíci
                result.day = atoi(token);
                result.parse_ok++;
                break;
            case NMEA_GNZDA_MONTH: // měsíc
                result.month = atoi(token);
                result.parse_ok++;
                break;
            case NMEA_GNZDA_YEAR: // rok
                result.year = atoi(token);
                result.parse_ok++;
                break;
            case NMEA_GNZDA_DAYOFWEEK: // den v týdnu
                result.dotw = atoi(token);
                result.parse_ok++;
                break;
            default:
                result.parse_ok = -1;
                break;
        }
    }
return result;
}
//---------------------------------------------------
// informace o zeměpisných souřadnicích
typedef struct {
    double  time;
    int     time_hour;
    int     time_min;
    int     time_sec;
    int     time_msec;
    double  latitude;
    uint8_t latitude_ch;
    int     latitude_degree;
    int     latitude_minutes;
    double  latitude_vteriny;
    double  longitude;
    uint8_t longitude_ch;
    int     longitude_degree;
    int     longitude_minutes;
    double  longitude_vteriny;
    int     fix;
    int     satelites;
    double  horizontal_dilution;
    double  altitude;
    uint8_t altitude_unit;
    double  geoid_height;
    uint8_t geoid_height_unit;
    uint8_t checksum;
    bool    checksum_ok;
    int     parse_ok;
} GNGGA;

/* Indexy */
#define NMEA_GPGGA_TIME                 1
#define NMEA_GPGGA_LATITUDE             2
#define NMEA_GPGGA_LATITUDE_CARDINAL    3
#define NMEA_GPGGA_LONGITUDE            4
#define NMEA_GPGGA_LONGITUDE_CARDINAL   5
#define NMEA_GPGGA_POSITION_FIX         6
#define NMEA_GPGGA_N_SATELLITES         7
#define NMEA_GPGGA_HORIZ_DILUTION       8
#define NMEA_GPGGA_ALTITUDE             9
#define NMEA_GPGGA_ALTITUDE_UNIT        10
#define NMEA_GPGGA_UNDULATION           11
#define NMEA_GPGGA_UNDULATION_UNIT      12

// parsování věty $GNGGA
GNGGA nmea_gngga( char *data, int len )
{
GNGGA result = {0.0, 0, 0, 0, 0, 0.0, ' ', 0.0, ' ', 0, 0, 0.0, 0.0, ' ', 0.0, ' ', '\0', false, 0};
int section = 0;
char *str1;
char *saveptr1;
char *token;
char *buf[10];

    for(section=0, str1 = data ; section<=13; section++, str1=NULL) {
        token = strtok_r(str1,",*",&saveptr1);
        if( token == NULL ) {
            break;
            }
        switch ( section ) {
            case 0: // nazev
                if( strcmp(token,"$GNGGA") == 0 ) { result.parse_ok=1; }
                break;
            case NMEA_GPGGA_TIME: // cas
                result.time  = strtod(token, NULL);
                result.time_hour = ((int)result.time)/10000;
                result.time_min  = ((int)result.time - (result.time_hour*10000))/100;
                result.time_sec  = ((int)result.time - (result.time_hour*10000) - (result.time_min*100));
                result.time_msec = (result.time - result.time_hour*10000.0 - result.time_min*100.0 - result.time_sec)*1000;
                result.parse_ok++;
                break;
            case NMEA_GPGGA_LATITUDE: // zeměpisná šířka ve stupních
                result.latitude = strtod(token,NULL)/100.0;
                result.latitude_degree  = atoi(token)/100;
                result.latitude_minutes = (atoi(token) - result.latitude_degree*100)*6/10;
                result.latitude_vteriny = (result.latitude - result.latitude_degree*1.0 - result.latitude_minutes*6.0/10.0)*6.0/10.0;
                if( result.latitude_vteriny < 0.0) { result.latitude_minutes += 1; result.latitude_vteriny += 60.0; }
                result.parse_ok++;
                break;
            case NMEA_GPGGA_LATITUDE_CARDINAL: // severní N nebo jižní S
                result.latitude_ch = token[0];
                result.parse_ok++;
                break;
            case NMEA_GPGGA_LONGITUDE: // zeměpisná délka
                result.longitude = strtod(token,NULL)/100.0;
                result.longitude_degree  = atoi(token)/100;
                result.longitude_minutes = (atoi(token) - result.longitude_degree*100)*6/10;
                result.longitude_vteriny = (result.longitude - result.longitude_degree*1.0 - result.longitude_minutes*6.0/10.0)*6.0/10.0;
                if( result.longitude_vteriny < 0.0) { result.longitude_minutes += 1; result.longitude_vteriny += 60.0; }
                result.parse_ok++;
                break;
            case NMEA_GPGGA_LONGITUDE_CARDINAL: // západní W nebo východní E
                result.longitude_ch = token[0];
                result.parse_ok++;
                break;
            case NMEA_GPGGA_POSITION_FIX: // fixace
                result.fix = atoi(token);
                result.parse_ok++;
                break;
            case NMEA_GPGGA_N_SATELLITES: // počet satelitů
                result.satelites = atoi(token);
                result.parse_ok++;
                break;
            case NMEA_GPGGA_HORIZ_DILUTION: // plavání chyby
                result.horizontal_dilution = strtod(token,NULL);
            case NMEA_GPGGA_ALTITUDE: // výška nad mořem
                result.altitude = strtod(token,NULL);
                result.parse_ok++;
                break;
            case NMEA_GPGGA_ALTITUDE_UNIT: // jednotka nadmořské výšky
                result.altitude_unit = token[0];
                result.parse_ok++;
                break;
            case NMEA_GPGGA_UNDULATION: // výška nad ideálním WGS84 elipsoidem
                result.geoid_height = strtod(token,NULL);
                result.parse_ok++;
                break;
            case NMEA_GPGGA_UNDULATION_UNIT: // jednotka výšky nad WGS84 elipsoidem
                result.geoid_height_unit = token[0];
                result.parse_ok++;
                break;
            case 13: // checksum
                result.checksum = atoi(token);
                result.parse_ok++;
                break;
            default:
                result.parse_ok = -1;
                break;
        }
    }
return result;
}

typedef struct {
        double  latitude;
        char    latitude_ch;
        double  longitude;
        char    longitude_ch;
        char    valid;
        double  time;
        int     time_hour;
        int     time_min;
        int     time_sec;
        int     time_msec;
        int     parse_ok;
} GLL;
/* Indexy */
#define NMEA_GPGLL_LATITUDE             1
#define NMEA_GPGLL_LATITUDE_CARDINAL    2
#define NMEA_GPGLL_LONGITUDE            3
#define NMEA_GPGLL_LONGITUDE_CARDINAL   4
#define NMEA_GPGLL_TIME                 5
#define NMEA_GPGLL_VALID_DATA           6

GLL nmea_gpgll( char *data, int len )
{
GLL result = {0.0, ' ', 0.0, ' ', 'N', 0.0, 0, 0, 0 };
int section = 0;
char *str1;
char *saveptr1;
char *token;
//char buf[10];

    for(section=0, str1 = data ; section<=6; section++, str1=NULL) {
        token = strtok_r(str1,",*",&saveptr1);
        if( token == NULL ) {
            break;
            }
        switch ( section ) {
            case 0: // nazev
                if( strcmp(token,"$GPGLL") == 0 ) { result.parse_ok=1; }
                break;
            case NMEA_GPGLL_LATITUDE: // zeměpisná délka
                result.latitude = strtod(token,NULL)/100.0;
                result.parse_ok++;
                break;
            case NMEA_GPGLL_LATITUDE_CARDINAL: // N - severní, S - jižní
                result.latitude_ch = token[0];
                result.parse_ok++;
                break;
            case NMEA_GPGLL_LONGITUDE: // zeměpisná délka
                result.longitude = strtod(token,NULL)/100.0;
                result.parse_ok++;
                break;
            case NMEA_GPGLL_LONGITUDE_CARDINAL: // N - severní, S - jižní
                result.longitude_ch = token[0];
                result.parse_ok++;
                break;
            case NMEA_GPGLL_TIME: // toto je volitelné
                result.time = strtod(token,NULL);
                result.time_hour = ((int)result.time)/10000;
                result.time_min  = ((int)result.time - (result.time_hour*10000))/100;
                result.time_sec  = ((int)result.time - (result.time_hour*10000) - (result.time_min*100));
                result.time_msec = (result.time - result.time_hour*10000.0 - result.time_min*100.0 - result.time_sec)*1000;
                result.parse_ok++;
                break;
            case NMEA_GPGLL_VALID_DATA: // A - data jsou platná
                result.valid = token[0];
                result.parse_ok++;
                break;
        }

    }
return result;
}

// porovná checksum NMEA věty
bool nmea_checksum(const char *data, int len )
{
uint8_t checksum = 0;
uint8_t checksum_calculated = 0;

    if(len < 7 ) return false; // příliš krátká věta
 //   printf("data[1] == '%c' data[len-5] == '%c'\n",data[1],data[len-5]);
    if(data[len-5] != '*') return false;
    if( ((data[len-4] >= '0' && data[len-4] <= '9') || (data[len-4] >= 'A' && data[len-4] <= 'F'))
        && ((data[len-3] >= '0' && data[len-3] <= '9') || (data[len-3] >= 'A' && data[len-3] <= 'F')) ) {
         checksum = strtol(&data[len-4],NULL,16);
         checksum_calculated = (uint8_t) data[1];
         for( int i=2; i<len-5; i++) {
             checksum_calculated ^= (uint8_t) data[i];
         }
    }
   // printf("Porovnani: %c%c == %02x vypočtene: %02x \n", data[len-4], data[len-3], checksum, checksum_calculated);
return checksum == checksum_calculated ? true : false;
}

bool muj_checksum( char *data, int len )
{
uint8_t checksum_calculated = 0;

    if(len < 7 ) return false; // příliš krátká věta
    checksum_calculated = (uint8_t) data[1];
    for( int i=2; data[i] != '*' && i<len; i++) {
        checksum_calculated ^= (uint8_t) data[i];
        }
    sprintf(&data[len],"%02X\r\n",checksum_calculated);
   // printf("Checksum vypočteny: %02x \n", checksum_calculated);
return true;
}

int main( void )
{
bool led_stav = true;
bool chsum = false;
GNGGA gngga;
GLL gpgll;
char dbuf[BUFLEN];
int sat = 1;
int len = 0;
datetime_t current_time = {0,0,0,0,0,0,0};
char datetime_buf[256];
char *datetime_str = &datetime_buf[0];

    char data[BUFLEN];
    stdio_init_all();
    gpio_init( LED_PIN );
    gpio_set_function( LED_PIN, GPIO_FUNC_SIO );
    gpio_set_dir( LED_PIN, true );
    gpio_put(LED_PIN, led_stav);

    sleep_ms(1500);
#if VYVOJ
    printf("Testovani navigacniho modulu 5.\n");
#endif
    // inicializace LCD dipleje
    printf("LCD init.\n");
    init_gpio();
    lcd_characters_init();
    lcd_init();
    lcd_clear();
    printf("LCD OK.\n");

    // inicializace UART
    uart_init(UART_ID,2400);
    printf("UART init.\n");

    gpio_set_function( UART_TX_PIN, UART_FUNCSEL_NUM(UART_ID, UART_TX_PIN ));
    gpio_set_function( UART_RX_PIN, UART_FUNCSEL_NUM(UART_ID, UART_RX_PIN ));
    int actual = uart_set_baudrate(UART_ID, BAUD_RATE );
    uart_set_hw_flow( UART_ID, false, false );
    uart_set_fifo_enabled( UART_ID, true );
    printf("UART OK %d.\n", actual);
#if 0
    if( uart_is_readable_within_us(UART_ID,5000) == true ) {
        int i = 0;
        uint8_t ch;
        do {
            ch = uart_getc(UART_ID);
            data[i] = ch;
            if(i<BUFLEN-1) i++;
            else break;
            data[i] = '\0';
        } while ( ch != '\n' && uart_is_readable_within_us(UART_ID, 2000) ) ;
    }
    // nastavíme co chceme prijímat
    char pcas_message[BUFLEN];
    strcpy(pcas_message,"$PCAS03,1,1,1,1,1,0,0,0,0,0,,,0,0*");
    len = strlen(pcas_message);
    muj_checksum(pcas_message,len);
    strcat(pcas_message,"\r\n");
    printf("%s resp: %s",pcas_message,data);
    uart_write_blocking(UART_ID,pcas_message,len);
    uart_tx_wait_blocking(UART_ID);
    // nastavíme GPS a GLONASS
    strcpy(pcas_message,"$PCAS04,4*");
    len = strlen(pcas_message);
    muj_checksum(pcas_message,len);
    strcat(pcas_message,"\r\n");
    printf("%s",pcas_message);
    uart_write_blocking(UART_ID,pcas_message,len);
    uart_tx_wait_blocking(UART_ID);

    // linka na 115200
    //
    // strcpy(pcas_message,"$PCAS01,5*");
    // len = strlen(pcas_message);
    // muj_checksum(pcas_message,len);
    // strcat(pcas_message,"\r\n");
    // printf("%s",pcas_message);
    // uart_write_blocking(UART_ID,pcas_message,len);
    // uart_tx_wait_blocking(UART_ID);
    strcpy(pcas_message,"$PQBAUD,W,115200*43\r\n");
    len = strlen(pcas_message);
//     muj_checksum(pcas_message,len);
    strcat(pcas_message,"\r\n");
    printf("Prikaz na zmenu rychlosti: %s",pcas_message);
    uart_write_blocking(UART_ID,pcas_message,len);
    uart_tx_wait_blocking(UART_ID);
//
    // tohle nechce fungovat GRRR.
    actual = 115200;
    printf("Setting UART baudrate %d\n",actual);
    uart_write_blocking(UART_ID,"  \r\n",4);
    uart_tx_wait_blocking(UART_ID);
    if( uart_is_readable_within_us(UART_ID,5000) == true ) {
        int i = 0;
        uint8_t ch;
        do {
            ch = uart_getc(UART_ID);
            data[i] = ch;
            if(i<17) i++;
            else break;
            data[i] = '\0';
        } while ( ch != '\n' && uart_is_readable_within_us(UART_ID, 2000) ) ;
    }
    data[18] = '\0';
    printf("Odpoved na zmenu rychlosti: %s\n",data);
    if( strcmp(data,"$PQBAUD,W,OK*40\r\n") == 0 ) {
        printf("Success 115200\n");
        actual = uart_set_baudrate(UART_ID, 115200);
    } else {
        printf("Return to 9600\n");
        actual = uart_set_baudrate(UART_ID, 9600);

    }
    sleep_ms(500);
    // // LCD
    lcd_home();
    lcd_set_cursor(0,0);
    cz_print(data);
    sleep_ms(2000);
#endif
    lcd_home();
    lcd_set_cursor(0,0);
    sat = 1;
    sprintf(dbuf,"Nastavuji čas. ");
    cz_print(dbuf);
    // synchronizace času
    rtc_init();
    memset(data,'\0',BUFLEN);
    while( current_time.year == 0 ) {
        if( uart_is_readable_within_us(UART_ID,5000) == true ) {
            int i = 0;
            uint8_t ch;
            do {
                ch = uart_getc(UART_ID);
                data[i] = ch;
                if(i<BUFLEN-1) i++;
                else break;
                data[i] = '\0';
            } while ( ch != '\n' && uart_is_readable_within_us(UART_ID, 2000) ) ;

            len = i;
            // $GNZDA -- checsum bude nekorektni

            if( len > 0 && data[0] == '$' && data[1] == 'G' && data[2] == 'N' && data[3] == 'Z' && data[4] == 'D' && data[5] == 'A' ) {
                printf("Nastavení času GNZDA: len=%3d; data='%s' \n",len,data );
                GNZDA gnzda = nmea_gnzda(data,len);
                if( gnzda.parse_ok == 6 ) {
                    current_time.year  = gnzda.year;
                    current_time.month = gnzda.month;
                    current_time.day   = gnzda.day;
                    current_time.dotw  = gnzda.dotw;
                    current_time.hour  = gnzda.hour;
                    current_time.min   = gnzda.min;
                    current_time.sec   = gnzda.sec;
                    rtc_set_datetime(&current_time);
                } else {
                    printf("parse_ok == %d\n", gnzda.parse_ok);
                }

            }
            if(len > 0 && data[0] == '$' && data[1] == 'G' && data[2] == 'N'  && data[3] == 'G' && data[4] == 'G' && data[5] == 'A' && nmea_checksum(data,len) ) {
                printf("Global GNSS location data ----- len= %d; data ='%s'\n",len,data);
                gngga = nmea_gngga(data,len);
                if( gngga.parse_ok == 14 ) {
                    lcd_home();
                    lcd_set_cursor(0,0);
                    sprintf(dbuf,"%c%f\xb0%02d:%02d",gngga.latitude_ch, gngga.latitude, gngga.time_hour, gngga.time_min);
                    cz_print(dbuf);
                    lcd_set_cursor(1,0);
                    sprintf(dbuf,"%c%f\xb0%02d|%02d",gngga.longitude_ch, gngga.longitude, gngga.time_sec, gngga.satelites);
                    cz_print(dbuf);
                }
            }
        }
        sleep_ms(50);
    }


    while( true ) {
        memset(data,'\0',BUFLEN);

        if( uart_is_readable_within_us(UART_ID,5000) == true ) {
            int i = 0;
            uint8_t ch;
            do {
                ch = uart_getc(UART_ID);
                data[i] = ch;
                if(i<BUFLEN-1) i++;
                else break;
                data[i] = '\0';
            } while ( ch != '\n' && uart_is_readable_within_us(UART_ID, 2000) ) ;

            len = i;
            chsum = nmea_checksum(data,len);

            // if( !chsum ) printf("len=%3d; data='%s' checksum=%s\n",len,data, chsum==false ? "false" : "true" );

            lcd_set_cursor(0,15);
            // switch (sat) {
            //     case 1: sprintf(dbuf,"|");  sat++; break;
            //     case 2: sprintf(dbuf,"/");  sat++; break;
            //     case 3: sprintf(dbuf,"-");  sat++; break;
            //     case 4: sprintf(dbuf,"\\"); sat++; break;
            //     case 5: sprintf(dbuf,"|");  sat++; break;
            //     case 6: sprintf(dbuf,"/");  sat++; break;
            //     case 7: sprintf(dbuf,"-");  sat++; break;
            //     case 8: sprintf(dbuf,"\\"); sat=1; break;
            // }
            // cz_print(dbuf);

            // $GNGGA Global GNSS location data

            if(len > 0 && data[0] == '$' && data[1] == 'G' && data[2] == 'N'  && data[3] == 'G' && data[4] == 'G' && data[5] == 'A' && chsum == true) {
                //printf("Global GNSS location data ----- len= %d; data ='%s'\n",len,data);
                gngga = nmea_gngga(data,len);
                if( gngga.parse_ok == 14 ) {

                    printf("Světový čas (UTC): %02d:%02d:%02d\n", gngga.time_hour, gngga.time_min, gngga.time_sec);
                    printf("Zeměpisné souřadnice: šířka %f %c, délka %f %c\n", gngga.latitude, gngga.latitude_ch, gngga.longitude, gngga.longitude_ch);
                    // printf("Zeměpisné souřadnice: šířka %2d˚ %2d' %4.1f\" %c,  délka %2d˚ %2d' %4.1f\" %c\n",
                    //        (int) gngga.latitude_degree, (int) gngga.latitude_minutes, gngga.latitude_minutes, gngga.latitude_vteriny, gngga.latitude_ch,
                    //        (int) gngga.longitude_degree, (int) gngga.longitude_minutes, gngga.longitude_vteriny, gngga.longitude_ch);
                    printf("Nadmořská výška: %5.1f %c nad mořem\n", gngga.altitude, gngga.altitude_unit);
                    printf("Počet viditelných satelitů: %d\n", gngga.satelites);
                    printf("Počet položek věty $GNGGA: %d fix %d chksum %s\n", gngga.parse_ok, gngga.fix, chsum==true?"OK":"ER");

                    lcd_home();
                    lcd_set_cursor(0,0);
                    sprintf(dbuf,"%c%f\xb0%02d:%02d",gngga.latitude_ch, gngga.latitude, gngga.time_hour, gngga.time_min);
                    cz_print(dbuf);
                    lcd_set_cursor(1,0);
                    sprintf(dbuf,"%c%f\xb0%02d|%02d",gngga.longitude_ch, gngga.longitude, gngga.time_sec, gngga.satelites);
                    cz_print(dbuf);
                } else {
#if VYVOJ
                    printf("Chyba parsování věty $GNGGA %d\n", gngga.parse_ok);
                    lcd_set_cursor(1,15);
                    sprintf(dbuf,"%c",'O');
                    cz_print(dbuf);
#endif
                }
            }
            // GPGLL -- zeměpisná šířka a délka
            if(len > 0 && data[0] == '$' && data[1] == 'G' && data[2] == 'P'  && data[3] == 'G' && data[4] == 'L' && data[5] == 'L') {
#if VYVOJ
                printf("Global GLL location data ----- len= %d; data ='%s'\n",len,data);
#endif
                gpgll = nmea_gpgll(data,len);
                if( gpgll.parse_ok == 5 ) {
#if VYVOJ
                    printf("Zeměpisné souřadnice: šířka %f %c, délka %f %c\n", gpgll.latitude, gpgll.latitude_ch, gpgll.longitude, gpgll.longitude_ch);
                    printf("Počet položek věty $GPGLL: %d chksum %s\n", gpgll.parse_ok, chsum==true?"OK":"ER");
#endif
                    lcd_home();
                    lcd_set_cursor(0,0);
                    sprintf(dbuf,"%c%f\xb0",gpgll.latitude_ch, gpgll.latitude);
                    cz_print(dbuf);
                    lcd_set_cursor(1,0);
                    sprintf(dbuf,"%c%f\xb0",gpgll.longitude_ch, gpgll.longitude );
                    cz_print(dbuf);
                } else if(gpgll.parse_ok == 7) {
#if VYVOJ
                    printf("Zeměpisné souřadnice: šířka %f %c, délka %f %c\n", gpgll.latitude, gpgll.latitude_ch, gpgll.longitude, gpgll.longitude_ch);
                    printf("Čas: %02d:%02d:%02d\n",gpgll.time_hour, gpgll.time_min, gpgll.time_sec);
                    printf("Počet položek věty $GPGLL: %d chksum %s\n", gpgll.parse_ok, chsum==true?"OK":"ER");
#endif
                    lcd_home();
                    lcd_set_cursor(0,0);
                    sprintf(dbuf,"%c%f",gpgll.latitude_ch, gpgll.latitude);
                    cz_print(dbuf);
                    lcd_set_cursor(1,0);
                    sprintf(dbuf,"%c%f",gpgll.longitude_ch, gpgll.longitude);
                    cz_print(dbuf);
                }
                else {
#if VYVOJ
                    printf("Chyba parsování věty $GPGLL %d\n", gngga.parse_ok);
#endif
                    lcd_set_cursor(1,15);
                    sprintf(dbuf,"%c",'e');
                    cz_print(dbuf);
                }
            }
            rtc_get_datetime(&current_time);
            datetime_to_str(datetime_str, sizeof(datetime_buf), &current_time);
            printf("\r%s      ", datetime_str);
            lcd_set_cursor(1,11);
            sprintf(dbuf,"%02d",current_time.sec);
            cz_print(dbuf);
        }
        led_stav = led_stav ? false : true;
        gpio_put( LED_PIN, led_stav );
        sleep_ms(80);
    }
}
// -------------------------------------------------------------------------------------------------

cmake_minimum_required(VERSION 3.12)

include($ENV{PICO_SDK_PATH}/external/pico_sdk_import.cmake)

project(navigace5 C CXX ASM)

pico_sdk_init()

# pridani zdrojovych kodu
add_executable(navigace5
    navigace5.c
    lcd_czech_chars.c

)

# enable usb output, disable uart output
pico_enable_stdio_usb(navigace5 1)
pico_enable_stdio_uart(navigace5 0)

# create map/bin/hex/uf2 file etc.
pico_add_extra_outputs(navigace5)

target_link_libraries(navigace5 pico_stdlib hardware_uart hardware_i2c hardware_rtc)

/** lcd_czech_char.h version 1.01

 * Copyright (c) 2024 Jirka Chráska <jirka@lixis.cz> All rigths reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification, are
 * permitted provided that the following conditions are met:

 * 1. Redistributions of source code must retain the above copyright notice, this list of
 *    conditions and the following disclaimer.
 * 2. Redistributions in binary form must reproduce the above copyright notice, this
 *    list of conditions and the following disclaimer in the documentation and/or
 *    other materials provided with the distribution.
 * 3. Neither the name of the copyright holder nor the names of its contributors
 *    may be used to endorse or promote products derived from this software
 *    without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
 * TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
 * PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 * HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 * DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 * THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 * (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
 * THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

#define DISPLAY_SDA 6
#define DISPLAY_SCL 7
#define I2C         i2c1

// inicializace GPIO
int init_gpio();

// inicializace displeje
void lcd_init();

// go to location on LCD
void lcd_set_cursor(int line, int position);


// inicializace českých znaků
void lcd_characters_init();

// tisk znakù na LCD displej
int cz_print(const char *str);

// šoupání s displejem
void twist(int chars, int pause, int repeat);

// výmaz dipleje
void lcd_clear(void);

// na první pozici
void lcd_home(void);

/** lcd_czech_chars.c version 1.01
 *
 * Copyright (c) 2024 Jirka Chráska <jirka@lixis.cz> All rigths reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification, are
 * permitted provided that the following conditions are met:

 * 1. Redistributions of source code must retain the above copyright notice, this list of
 *    conditions and the following disclaimer.
 * 2. Redistributions in binary form must reproduce the above copyright notice, this
 *    list of conditions and the following disclaimer in the documentation and/or
 *    other materials provided with the distribution.
 * 3. Neither the name of the copyright holder nor the names of its contributors
 *    may be used to endorse or promote products derived from this software
 *    without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
 * TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
 * PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 * HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 * DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 * THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 * (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
 * THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 * Český překlad
 * Copyright (c) 2024 Jirka Chráska <jirka@lixis.cz>. Všechna práva vyhrazena.
 *
 * Redistribuce a použití zdrojových i binárních forem díla, v původním i upravovaném tvaru, jsou
 * povoleny za následujících podmínek:
 *
 * 1. Šířený zdrojový kód musí obsahovat výše uvedenou informaci o copyrightu, tento seznam
 *    podmínek a níže uvedené zřeknutí se odpovědnosti.
 * 2. Šířený binární tvar musí nést výše uvedenou informaci o copyrightu, tento seznam
 *    podmínek a níže uvedené zřeknutí se odpovědnosti ve své dokumentaci a/nebo dalších
 *    poskytovaných materiálech.
 * 3. Ani jméno vlastníka práv, ani jména přispěvatelů nemohou být použita při podpoře nebo
 *    právních aktech souvisejících s produkty odvozenými z tohoto softwaru bez výslovného
 *    písemného povolení.
 *
 * TENTO SOFTWARE JE POSKYTOVÁN DRŽITELEM LICENCE A JEHO PŘISPĚVATELI "JAK STOJÍ A LEŽÍ" A JAKÉKOLIV
 * VÝSLOVNÉ NEBO PŘEDPOKLÁDANÉ ZÁRUKY VČETNĚ, ALE NEJEN, PŘEDPOKLÁDANÝCH OBCHODNÍCH ZÁRUK A ZÁRUKY
 * VHODNOSTI PRO JAKÝKOLIV ÚČEL JSOU POPŘENY. DRŽITEL, ANI PŘISPĚVATELÉ NEBUDOU V ŽÁDNÉM PŘÍPADĚ
 * ODPOVĚDNI ZA JAKÉKOLIV PŘÍMÉ, NEPŘÍMÉ, NÁHODNÉ, ZVLÁŠTNÍ, PŘÍKLADNÉ NEBO VYPLÝVAJÍCÍ ŠKODY
 * (VČETNĚ, ALE NEJEN, ŠKOD VZNIKLÝCH NARUŠENÍM DODÁVEK ZBOŽÍ NEBO SLUŽEB; ZTRÁTOU POUŽITELNOSTI,
 * DAT NEBO ZISKŮ; NEBO PŘERUŠENÍM OBCHODNÍ ČINNOSTI) JAKKOLIV ZPŮSOBENÉ NA ZÁKLADĚ JAKÉKOLIV TEORIE
 * O ZODPOVĚDNOSTI, AŤ UŽ PLYNOUCÍ Z JINÉHO SMLUVNÍHO VZTAHU, URČITÉ ZODPOVĚDNOSTI NEBO PŘEČINU
 * (VČETNĚ NEDBALOSTI) NA JAKÉMKOLIV ZPŮSOBU POUŽITÍ TOHOTO SOFTWARE, I V PŘÍPADĚ, ŽE DRŽITEL PRÁV
 * BYL UPOZORNĚN NA MOŽNOST TAKOVÝCH ŠKOD.
 */

#include <stdio.h>
#include <string.h>
#include "pico/stdlib.h"
#include "hardware/i2c.h"
#include "pico/binary_info.h"
#include "lcd_czech_chars.h"

// commands
const int LCD_CLEARDISPLAY 	        = 0x01;
const int LCD_RETURNHOME 	        = 0x02;
const int LCD_ENTRYMODESET 	        = 0x04;
const int LCD_DISPLAYCONTROL 	    = 0x08;
const int LCD_CURSORSHIFT 	        = 0x10;
const int LCD_FUNCTIONSET 	        = 0x20;
const int LCD_SETCGRAMADDR 	        = 0x40;
const int LCD_SETDDRAMADDR 	        = 0x80;

// flags for display entry mode
const int LCD_ENTRYSHIFTINCREMENT   = 0x01;
const int LCD_ENTRYLEFT 	        = 0x02;

// flags for display and cursor control
const int LCD_BLINKON 		        = 0x01;
const int LCD_CURSORON 		        = 0x02;
const int LCD_DISPLAYON 	        = 0x04;

// flags for display and cursor shift
const int LCD_MOVERIGHT 	        = 0x04;
const int LCD_DISPLAYMOVE 	        = 0x08;

// flags for function set
const int LCD_5x10DOTS 		        = 0x04;
const int LCD_2LINE 		        = 0x08;
const int LCD_8BITMODE 		        = 0x10;

// flag for backlight control
const int LCD_BACKLIGHT             = 0x08;

const int LCD_ENABLE_BIT            = 0x04;

// By default these LCD display drivers are on bus address 0x27
static int addr = 0x27;

// Modes for lcd_send_byte
#define LCD_CHARACTER  1
#define LCD_COMMAND    0

#define MAX_LINES      2
#define MAX_CHARS      16


// czech characters ISO-8859-2
const unsigned char znak_a_acute  =  '\xE1';    // á
const unsigned char znak_A_acute  =  '\xC1';    // Á
const unsigned char znak_c_caron  =  '\xE8';    // č
const unsigned char znak_C_caron  =  '\xC8';    // Č
const unsigned char znak_d_caron  =  '\xEF';    // ď
const unsigned char znak_D_caron  =  '\xCF';    // Ď
const unsigned char znak_e_acute  =  '\xE9';    // é
const unsigned char znak_E_acute  =  '\xC9';    // É
const unsigned char znak_e_caron  =  '\xEC';    // ě
const unsigned char znak_E_caron  =  '\xCC';    // Ě
const unsigned char znak_i_acute  =  '\xED';    // í
const unsigned char znak_I_acute  =  '\xCD';    // Í
const unsigned char znak_n_caron  =  '\xF2';    // ň
const unsigned char znak_N_caron  =  '\xD2';    // Ň
const unsigned char znak_o_acute  =  '\xF3';    // ó
const unsigned char znak_O_acute  =  '\xD3';    // Ó
const unsigned char znak_r_caron  =  '\xF8';    // ř
const unsigned char znak_R_caron  =  '\xD8';    // Ř
const unsigned char znak_s_caron  =  '\xB9';    // š
const unsigned char znak_S_caron  =  '\xA9';    // Š
const unsigned char znak_t_caron  =  '\xBB';    // ť
const unsigned char znak_T_caron  =  '\xAB';    // Ť
const unsigned char znak_u_acute  =  '\xFA';    // ú
const unsigned char znak_U_acute  =  '\xDA';    // Ú
const unsigned char znak_u_ogonek =  '\xF9';    // ů
const unsigned char znak_U_ogonek =  '\xD9';    // Ů
const unsigned char znak_y_acute  =  '\xFD';    // ý
const unsigned char znak_Y_acute  =  '\xDD';    // Ý
const unsigned char znak_z_caron  =  '\xBE';    // ž
const unsigned char znak_Z_caron  =  '\xAE';    // Ž
const unsigned char degree_symbol =  '\xB0';    // °

// Custom characters
static unsigned char c_char[256];
static unsigned char cz_char[8]; // custom chars definitions
static uint8_t volna_pozice = 0;
static uint8_t cursor_x         = 0;
static uint8_t cursor_y         = 0;
static uint8_t num_columns      = 40;
static uint8_t num_lines        = 2;

typedef struct cchar {
    unsigned char znak;
    char map[8];
    char location;
} CZCHAR;

#define pismenek    31
static CZCHAR czech_chars[pismenek] = {
{
    znak_a_acute, // 1
    {
    0b00000010,
    0b00000100,
    0b00001110,
    0b00000001,
    0b00001111,
    0b00010001,
    0b00001111,
    0b00000000
    },
    0
},
{
    znak_A_acute, // 2
    {
    0b00000010,
    0b00000100,
    0b00001010,
    0b00010001,
    0b00011111,
    0b00010001,
    0b00010001,
    0b00000000
    },
    0
},
{
    znak_c_caron, // 3
    {
    0b00001010,
    0b00000100,
    0b00001110,
    0b00010001,
    0b00010000,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_C_caron, // 4
    {
    0b00001010,
    0b00001110,
    0b00010001,
    0b00010000,
    0b00010000,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_d_caron, // 5
    {
    0b00010101,
    0b00001001,
    0b00001101,
    0b00010011,
    0b00010001,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_D_caron, // 6
    {
    0b00011101,
    0b00010010,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00010010,
    0b00011100,
    0b00000000
    },
    0
},
{
    znak_e_acute, // 7
    {
    0b00000010,
    0b00000100,
    0b00001110,
    0b00010001,
    0b00011111,
    0b00010000,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_E_acute, // 8
    {
    0b00000010,
    0b00000100,
    0b00011111,
    0b00010000,
    0b00011111,
    0b00010000,
    0b00011111,
    0b00000000
    },
    0
},
{
    znak_e_caron, // 9
    {
    0b00001010,
    0b00000100,
    0b00001110,
    0b00010001,
    0b00011111,
    0b00010000,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_E_caron, // 10
    {
    0b00001010,
    0b00000100,
    0b00011111,
    0b00010000,
    0b00011111,
    0b00010000,
    0b00011111,
    0b00000000
    },
    0
},
{
    znak_i_acute, // 11
    {
    0b00000010,
    0b00000100,
    0b00000000,
    0b00001100,
    0b00000100,
    0b00000100,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_I_acute, // 12
    {
    0b00000010,
    0b00000101,
    0b00000000,
    0b00001110,
    0b00000100,
    0b00000100,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_n_caron, // 13
    {
    0b00001010,
    0b00000100,
    0b00010110,
    0b00011101,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00000000
    },
    0
},
{
    znak_N_caron, // 14
    {
    0b00001010,
    0b00000100,
    0b00010001,
    0b00011001,
    0b00010101,
    0b00010011,
    0b00010001,
    0b00000000
    },
    0
},
{
    znak_o_acute, // 15
    {
    0b00000010,
    0b00000100,
    0b00001110,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_O_acute, // 16
    {
    0b00000001,
    0b00001110,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_r_caron, // 17
    {
    0b00001010,
    0b00000100,
    0b00010110,
    0b00011001,
    0b00010000,
    0b00010000,
    0b00010000,
    0b00000000
    },
    0
},
{
    znak_R_caron, // 18
    {
    0b00001010,
    0b00011110,
    0b00010001,
    0b00010001,
    0b00011110,
    0b00010010,
    0b00010001,
    0b00000000
    },
    0
},
{
    znak_s_caron, // 19
    {
    0b00001010,
    0b00000100,
    0b00001111,
    0b00010000,
    0b00001110,
    0b00000001,
    0b00011110,
    0b00000000
    },
    0
},
{
    znak_S_caron, // 20
    {
    0b00001010,
    0b00001111,
    0b00010000,
    0b00010000,
    0b00001110,
    0b00000001,
    0b00011110,
    0b00000000
    },
    0
},
{
    znak_t_caron, // 21
    {
    0b00001101,
    0b00001010,
    0b00011100,
    0b00001000,
    0b00001000,
    0b00001001,
    0b00000110,
    0b00000000
    },
    0
},
{
    znak_T_caron, // 22
    {
    0b00001010,
    0b00011111,
    0b00000100,
    0b00000100,
    0b00000100,
    0b00000100,
    0b00000100,
    0b00000000
    },
    0
},
{
    znak_u_acute, // 23
    {
    0b00000010,
    0b00000100,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00010011,
    0b00001101,
    0b00000000
    },
    0
},
{
    znak_U_acute, // 24
    {
    0b00000010,
    0b00010101,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_u_ogonek, // 25
    {
    0b00000100,
    0b00001010,
    0b00010101,
    0b00010001,
    0b00010001,
    0b00010011,
    0b00001101,
    0b00000000
    },
    0
},
{
    znak_U_ogonek, // 26
    {
    0b00000100,
    0b00001010,
    0b00010101,
    0b00010001,
    0b00010001,
    0b00010001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_y_acute, // 27
    {
    0b00000010,
    0b00000100,
    0b00010001,
    0b00010001,
    0b00001111,
    0b00000001,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_Y_acute, // 28
    {
    0b00000010,
    0b00010101,
    0b00010001,
    0b00001010,
    0b00000100,
    0b00000100,
    0b00001110,
    0b00000000
    },
    0
},
{
    znak_z_caron, // 29
    {
    0b00001010,
    0b00000100,
    0b00011111,
    0b00000010,
    0b00000100,
    0b00001000,
    0b00011111,
    0b00000000
    },
    0
},
{
    znak_Z_caron, // 30
    {
    0b00001010,
    0b00010101,
    0b00000001,
    0b00000010,
    0b00000100,
    0b00001000,
    0b00011111,
    0b00000000
    },
    0
},
{
    degree_symbol, // 31
    {
    0b00000110,
    0b00001001,
    0b00000110,
    0b00000000,
    0b00000000,
    0b00000000,
    0b00000000,
    0b00000000
    },
    0
}
};

/* Quick helper function for single byte transfers */
void i2c_write_byte(uint8_t val)
{
    i2c_write_blocking(I2C, addr, &val, 1, false);
}

/* Quick helper function for single byte transfers */
uint8_t i2c_read_byte()
{
uint8_t val = 0;
    i2c_read_blocking(I2C, addr, &val, 1, false);
return val;
}

void lcd_toggle_enable(uint8_t val)
{
// Toggle enable pin on LCD display
// We cannot do this too quickly or things don't work
#define DELAY_US 600
    sleep_us(DELAY_US);
    i2c_write_byte(val | LCD_ENABLE_BIT);
    sleep_us(DELAY_US);
    i2c_write_byte(val & ~LCD_ENABLE_BIT);
    sleep_us(DELAY_US);
}

// The display is sent a byte as two separate nibble transfers
void lcd_send_byte(uint8_t val, int mode)
{
    uint8_t high = mode | (val & 0xF0) | LCD_BACKLIGHT;
    uint8_t low  = mode | ((val << 4) & 0xF0) | LCD_BACKLIGHT;

    i2c_write_byte(high);
    lcd_toggle_enable(high);
    i2c_write_byte(low);
    lcd_toggle_enable(low);
}

// vymaže display včetně na definovaných znaků
void lcd_clear(void)
{
    lcd_send_byte(LCD_CLEARDISPLAY, LCD_COMMAND);

    for(int i=0; i<8; i++) {
        cz_char[i] = '\x00';
    }
    volna_pozice = 0;
}

void lcd_home(void)
{
    lcd_send_byte(LCD_RETURNHOME, LCD_COMMAND);
    cursor_x = 0;
    cursor_y = 0;
}

void lcd_move_left(void) // pohyb doleva
{
    lcd_send_byte(LCD_CURSORSHIFT|LCD_DISPLAYMOVE, LCD_COMMAND);
//    printf("lcd_move_left ");
}
void lcd_move_right(void) // pohyb doprava
{
    lcd_send_byte(LCD_CURSORSHIFT|LCD_DISPLAYMOVE|LCD_MOVERIGHT, LCD_COMMAND);
//    printf("lcd_move_right ");
}

// go to location on LCD
void lcd_set_cursor(int line, int position)
{
    int val = (line == 0) ? 0x80 + position : 0xC0 + position;
    cursor_x = position;
    cursor_y = line;
    lcd_send_byte(val, LCD_COMMAND);
}

static void inline lcd_char(char val)
{
    lcd_send_byte(val, LCD_CHARACTER);
    cursor_x += 1;
    if(cursor_x >= num_columns) {
        cursor_x  = 0;
        cursor_y += 1;
    }
    if(cursor_y >= num_lines) {
        cursor_y = 0;
    }
//    printf("x=%d,y=%d ",cursor_x,cursor_y);
}

void lcd_string(const char *s)
{
    while (*s) {
        lcd_char(*s++);
    }
}

// inicializace displeje
void lcd_init()
{
    lcd_send_byte(0x03, LCD_COMMAND);
    lcd_send_byte(0x03, LCD_COMMAND);
    lcd_send_byte(0x03, LCD_COMMAND);
    lcd_send_byte(0x02, LCD_COMMAND);

    lcd_send_byte(LCD_ENTRYMODESET   | LCD_ENTRYLEFT, LCD_COMMAND);
    lcd_send_byte(LCD_FUNCTIONSET    | LCD_2LINE,     LCD_COMMAND);
    lcd_send_byte(LCD_DISPLAYCONTROL | LCD_DISPLAYON, LCD_COMMAND);
    lcd_clear();
}

// custom character definition
void lcd_create_custom_char(uint8_t location, const char map[] )
{
    location = location << 3;
//    printf("location=%x ", LCD_SETCGRAMADDR | location);
    lcd_send_byte(LCD_SETCGRAMADDR | location, LCD_COMMAND);
    for(int i=0; i<8; i++) {
	    lcd_send_byte(map[i],LCD_CHARACTER);
	    sleep_us(40);
	    }
    uint8_t adr = (cursor_y == 0) ? 0x80 + cursor_x : 0xC0 + cursor_x;
    lcd_send_byte(LCD_SETDDRAMADDR | adr, LCD_COMMAND);
}

void lcd_characters_init()
{
    for(int i=0; i<256; i++) {
        if(i <  0x20)               c_char[i] = '\x20';
        if(i >= 0x20 && i< 0x80)    c_char[i] = (unsigned char) i;
        if(i >= 0x80)               c_char[i] = '\x80';
    }

    for(int i=0; i<8; i++) {
        cz_char[i] = '\x00';
    }
    volna_pozice = 0;

    c_char[znak_a_acute]  = '\xFF';
    c_char[znak_A_acute]  = '\xFF';
    c_char[znak_c_caron]  = '\xFF';
    c_char[znak_C_caron]  = '\xFF';
    c_char[znak_d_caron]  = '\xFF';
    c_char[znak_D_caron]  = '\xFF';
    c_char[znak_e_acute]  = '\xFF';
    c_char[znak_E_acute]  = '\xFF';
    c_char[znak_e_caron]  = '\xFF';
    c_char[znak_E_caron]  = '\xFF';
    c_char[znak_i_acute]  = '\xFF';
    c_char[znak_I_acute]  = '\xFF';
    c_char[znak_n_caron]  = '\xFF';
    c_char[znak_N_caron]  = '\xFF';
    c_char[znak_o_acute]  = '\xFF';
    c_char[znak_O_acute]  = '\xFF';
    c_char[znak_r_caron]  = '\xFF';
    c_char[znak_R_caron]  = '\xFF';
    c_char[znak_s_caron]  = '\xFF';
    c_char[znak_S_caron]  = '\xFF';
    c_char[znak_t_caron]  = '\xFF';
    c_char[znak_T_caron]  = '\xFF';
    c_char[znak_u_acute]  = '\xFF';
    c_char[znak_U_acute]  = '\xFF';
    c_char[znak_u_ogonek] = '\xFF';
    c_char[znak_U_ogonek] = '\xFF';
    c_char[znak_y_acute]  = '\xFF';
    c_char[znak_Y_acute]  = '\xFF';
    c_char[znak_z_caron]  = '\xFF';
    c_char[znak_Z_caron]  = '\xFF';
    c_char[degree_symbol] = '\xFF';

}


// tisk znaků na LCD displej
int cz_print(const char *str)
{
char c;
uint8_t nadefinovano = 8;
    while(*str) {
        c = *str;
//        printf("c=%c,'0x%x' ",c,c);
        nadefinovano = 8;
        if(c > '\x7F' && c < '\xFF' && c_char[c] == '\xFF') { // musíme použít custom znak:  podíváme, zda už ho máme nadefinovaný anebo ho budeme definovat
            for(unsigned int k = 0; k<8; k++) {
                if(cz_char[k] == c) { // máme nadefinováno
                    nadefinovano = k;
                }
            }
            if(nadefinovano == 8) { // nemáme nadefinováno
                // vyhledame volnou pozici k definici
                if(volna_pozice > 7) {
                    volna_pozice = 0;
                }
                for(unsigned int j=0; j < pismenek; j++) { // vyhledame definici
                    if(czech_chars[j].znak == c) { // definice noveho znaku
                        lcd_create_custom_char(volna_pozice, czech_chars[j].map);
                        cz_char[volna_pozice] = c;
                        nadefinovano = volna_pozice;
                        volna_pozice++;
                    }
                }
            }
            // máme nadefinováno
            c = nadefinovano + 8;
        } // nemusíme použít custom znak
        lcd_char(c);
        str++;
    } // for str
}

// inicializace GPIO
int init_gpio()
{
    i2c_init(I2C, 400 * 1000);
    gpio_set_function(DISPLAY_SDA, GPIO_FUNC_I2C);
    gpio_set_function(DISPLAY_SCL, GPIO_FUNC_I2C);
    gpio_pull_up(DISPLAY_SCL);
    gpio_pull_up(DISPLAY_SDA);
}

void twist(int chars, int pause, int repeat)
{
int i=0;
while(repeat) {
    sleep_ms(pause*2);
    for(i=0; i<chars;i++) {
        lcd_move_left();
        sleep_ms(pause);
        }
    sleep_ms(pause*2);
    for(i=0; i<chars;i++) {
        lcd_move_right();
        sleep_ms(pause);
        }
    sleep_ms(pause*2);
    repeat--;
    }
}
