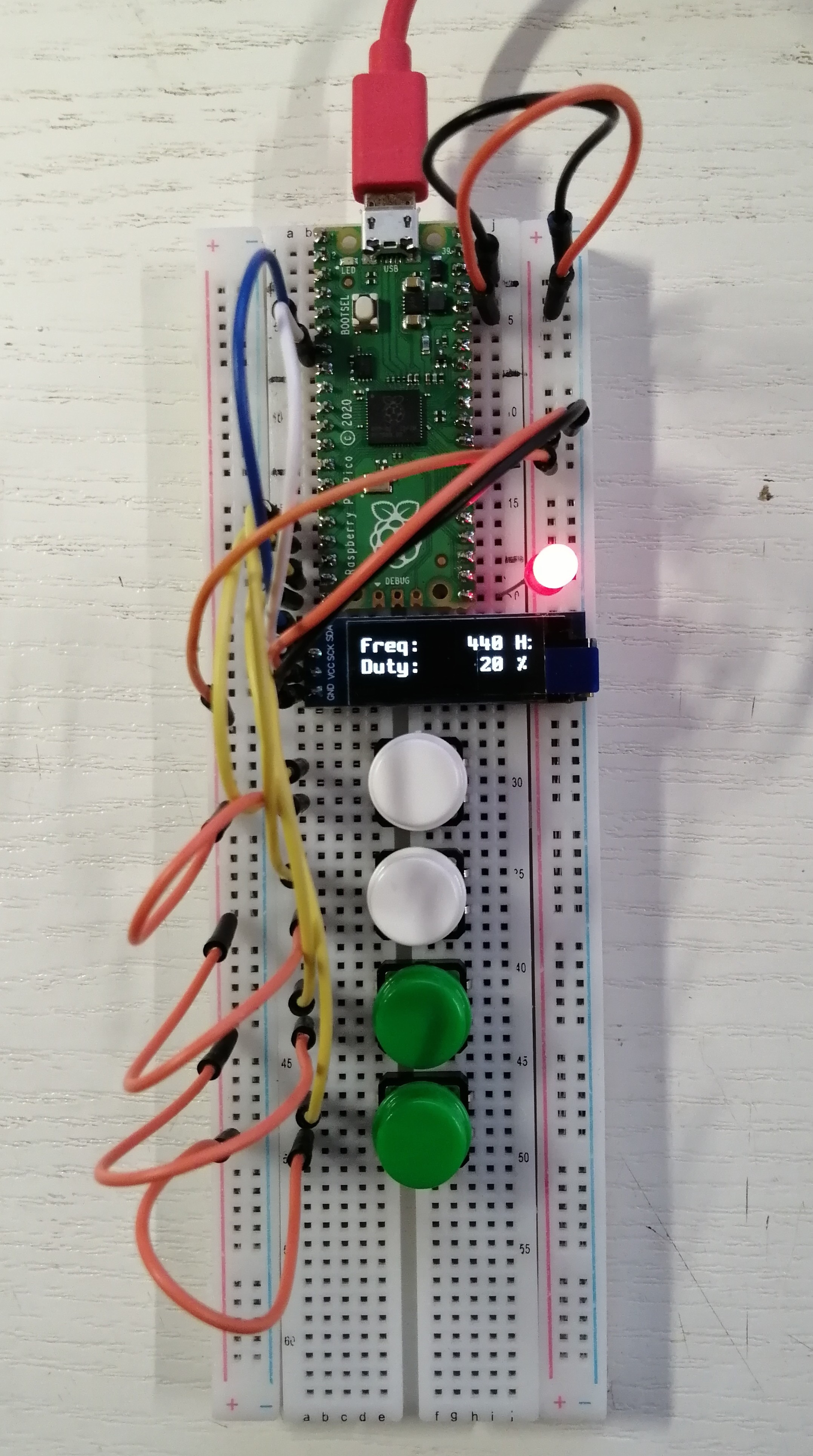

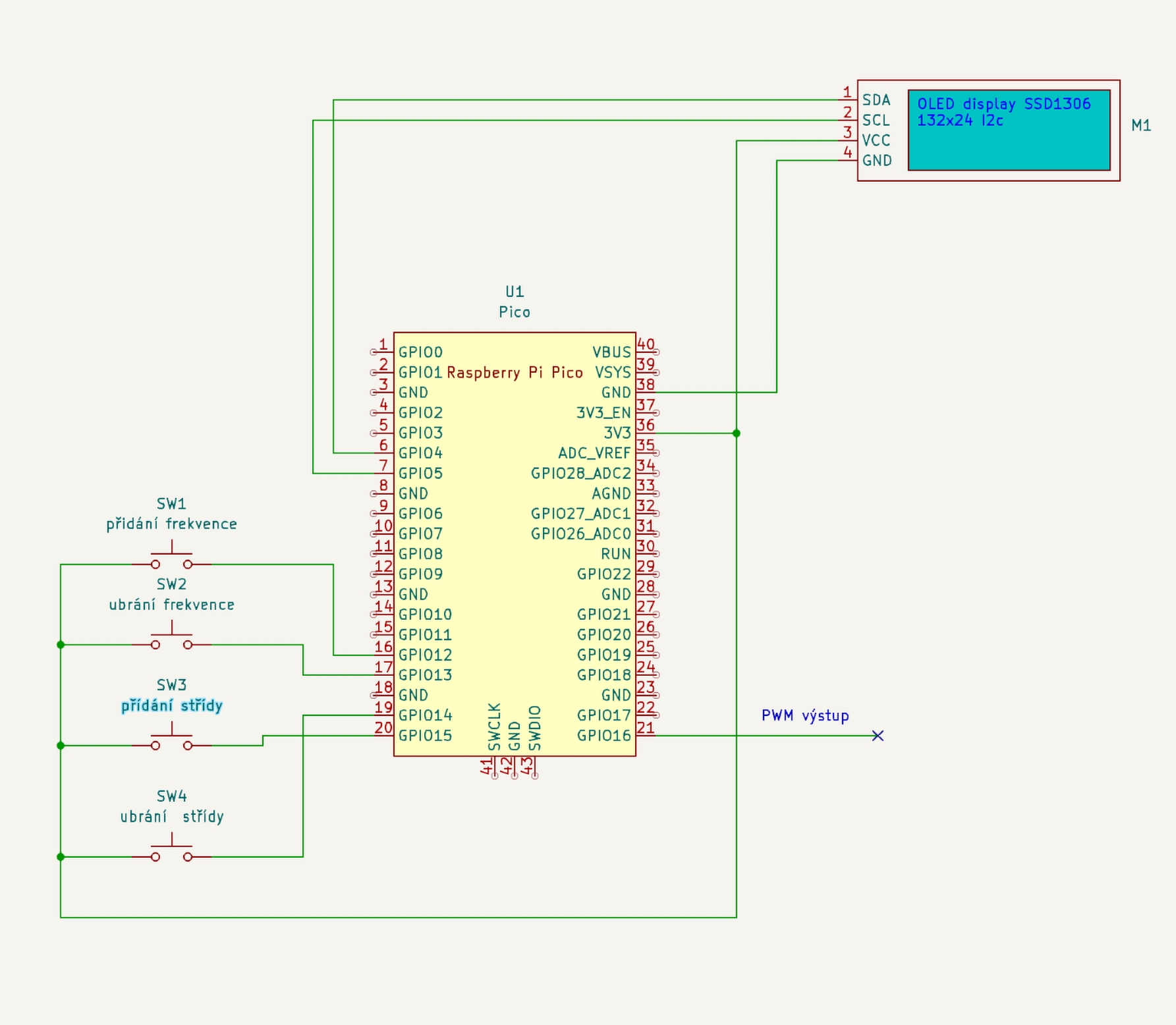

Generátor pulsů s OLED displejem

/*

MIT License

Copyright (c) 2021 David Schramm

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
*/

#include <pico/stdlib.h>
#include <hardware/i2c.h>
#include <pico/binary_info.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>

#include "ssd1306.h"
#include "font.h"

inline static void swap(int32_t *a, int32_t *b) {
    int32_t *t=a;
    *a=*b;
    *b=*t;
}

inline static void fancy_write(i2c_inst_t *i2c, uint8_t addr, const uint8_t *src, size_t len, char *name) {
    switch(i2c_write_blocking(i2c, addr, src, len, false)) {
    case PICO_ERROR_GENERIC:
        printf("[%s] addr not acknowledged!\n", name);
        break;
    case PICO_ERROR_TIMEOUT:
        printf("[%s] timeout!\n", name);
        break;
    default:
        //printf("[%s] wrote successfully %lu bytes!\n", name, len);
        break;
    }
}

inline static void ssd1306_write(ssd1306_t *p, uint8_t val) {
    uint8_t d[2]= {0x00, val};
    fancy_write(p->i2c_i, p->address, d, 2, "ssd1306_write");
}

bool ssd1306_init(ssd1306_t *p, uint16_t width, uint16_t height, uint8_t address, i2c_inst_t *i2c_instance) {
    p->width=width;
    p->height=height;
    p->pages=height/8;
    p->address=address;

    p->i2c_i=i2c_instance;


    p->bufsize=(p->pages)*(p->width);
    if((p->buffer=malloc(p->bufsize+1))==NULL) {
        p->bufsize=0;
        return false;
    }

    ++(p->buffer);

    // from https://github.com/makerportal/rpi-pico-ssd1306
    uint8_t cmds[]= {
        SET_DISP,
        // timing and driving scheme
        SET_DISP_CLK_DIV,
        0x80,
        SET_MUX_RATIO,
        height - 1,
        SET_DISP_OFFSET,
        0x00,
        // resolution and layout
        SET_DISP_START_LINE,
        // charge pump
        SET_CHARGE_PUMP,
        p->external_vcc?0x10:0x14,
        SET_SEG_REMAP | 0x01,           // column addr 127 mapped to SEG0
        SET_COM_OUT_DIR | 0x08,         // scan from COM[N] to COM0
        SET_COM_PIN_CFG,
        width>2*height?0x02:0x12,
        // display
        SET_CONTRAST,
        0xff,
        SET_PRECHARGE,
        p->external_vcc?0x22:0xF1,
        SET_VCOM_DESEL,
        0x30,                           // or 0x40?
        SET_ENTIRE_ON,                  // output follows RAM contents
        SET_NORM_INV,                   // not inverted
        SET_DISP | 0x01,
        // address setting
        SET_MEM_ADDR,
        0x00,  // horizontal
    };

    for(size_t i=0; i<sizeof(cmds); ++i)
        ssd1306_write(p, cmds[i]);

    return true;
}

inline void ssd1306_deinit(ssd1306_t *p) {
    free(p->buffer-1);
}

inline void ssd1306_poweroff(ssd1306_t *p) {
    ssd1306_write(p, SET_DISP|0x00);
}

inline void ssd1306_poweron(ssd1306_t *p) {
    ssd1306_write(p, SET_DISP|0x01);
}

inline void ssd1306_contrast(ssd1306_t *p, uint8_t val) {
    ssd1306_write(p, SET_CONTRAST);
    ssd1306_write(p, val);
}

inline void ssd1306_invert(ssd1306_t *p, uint8_t inv) {
    ssd1306_write(p, SET_NORM_INV | (inv & 1));
}

inline void ssd1306_clear(ssd1306_t *p) {
    memset(p->buffer, 0, p->bufsize);
}

void ssd1306_clear_pixel(ssd1306_t *p, uint32_t x, uint32_t y) {
    if(x>=p->width || y>=p->height) return;

    p->buffer[x+p->width*(y>>3)]&=~(0x1<<(y&0x07));
}

void ssd1306_draw_pixel(ssd1306_t *p, uint32_t x, uint32_t y) {
    if(x>=p->width || y>=p->height) return;

    p->buffer[x+p->width*(y>>3)]|=0x1<<(y&0x07); // y>>3==y/8 && y&0x7==y%8
}

void ssd1306_draw_line(ssd1306_t *p, int32_t x1, int32_t y1, int32_t x2, int32_t y2) {
    if(x1>x2) {
        swap(&x1, &x2);
        swap(&y1, &y2);
    }

    if(x1==x2) {
        if(y1>y2)
            swap(&y1, &y2);
        for(int32_t i=y1; i<=y2; ++i)
            ssd1306_draw_pixel(p, x1, i);
        return;
    }

    float m=(float) (y2-y1) / (float) (x2-x1);

    for(int32_t i=x1; i<=x2; ++i) {
        float y=m*(float) (i-x1)+(float) y1;
        ssd1306_draw_pixel(p, i, (uint32_t) y);
    }
}

void ssd1306_clear_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height) {
    for(uint32_t i=0; i<width; ++i)
        for(uint32_t j=0; j<height; ++j)
            ssd1306_clear_pixel(p, x+i, y+j);
}

void ssd1306_draw_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height) {
    for(uint32_t i=0; i<width; ++i)
        for(uint32_t j=0; j<height; ++j)
            ssd1306_draw_pixel(p, x+i, y+j);
}

void ssd1306_draw_empty_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height) {
    ssd1306_draw_line(p, x, y, x+width, y);
    ssd1306_draw_line(p, x, y+height, x+width, y+height);
    ssd1306_draw_line(p, x, y, x, y+height);
    ssd1306_draw_line(p, x+width, y, x+width, y+height);
}

void ssd1306_draw_char_with_font(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint8_t *font, char c) {
    if(c<font[3]||c>font[4])
        return;

    uint32_t parts_per_line=(font[0]>>3)+((font[0]&7)>0);
//    printf("\nF8[x,y]=[%3d,%2d] scale=%1d char=%02x, ppl=%d\n",x,y,scale,c,parts_per_line);
    for(uint8_t w=0; w<font[1]; ++w) { // width
        uint32_t pp=(c-font[3])*font[1]*parts_per_line+w*parts_per_line+5;
//        printf("pp=%d: ",pp);
        for(uint32_t lp=0; lp<parts_per_line; ++lp) {
            uint8_t line=font[pp];
//            printf("line=%02x, ",line);
            for(int8_t j=0; j<8; ++j, line>>=1) {
                if(line & 1)
                    ssd1306_draw_square(p, x+w*scale, y+((lp<<3)+j)*scale, scale, scale);
            }

            ++pp;
        }
    }
}

void ssd1306_draw_char_with_font16(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint16_t *font, char c) {
    if(c<font[3]||c>font[4])
        return;

    uint32_t parts_per_line=(font[0]>>3)+((font[0]&7)>0);

//    printf("\nF16[x,y]=[%3d,%2d] scale=%1d char=%02x, ppl=%d\n",x,y,scale,c,parts_per_line);
    parts_per_line = 1;
    for(uint16_t w=0; w<font[1]; ++w) { // width
        uint32_t pp=(c-font[3])*font[1]*parts_per_line+w*parts_per_line+5;
//        printf("pp=%d: ",pp);
        for(uint32_t lp=0; lp<parts_per_line; ++lp) {
            uint16_t line=font[pp];
//            printf("line=%04x, ",line);
            for(int16_t j=0; j<16; ++j, line>>=1) {
                if(line & 1)
                    ssd1306_draw_square(p, x+w*scale, y+((lp<<3)+j)*scale, scale, scale);
            }

            ++pp;
        }
    }
}

void ssd1306_draw_string_with_font(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint8_t *font, const char *s) {
    for(int32_t x_n=x; *s; x_n+=(font[1]+font[2])*scale) {
        ssd1306_draw_char_with_font(p, x_n, y, scale, font, *(s++));
    }
}

void ssd1306_draw_string_with_font16(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint16_t *font, const char *s) {
    for(int32_t x_n=x; *s; x_n+=(font[1]+font[2])*scale) {
        ssd1306_draw_char_with_font16(p, x_n, y, scale, font, *(s++));
    }
}

void ssd1306_draw_char(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, char c) {
    ssd1306_draw_char_with_font(p, x, y, scale, font_8x5, c);
}

void ssd1306_draw_string(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const char *s) {
    ssd1306_draw_string_with_font(p, x, y, scale, font_8x5, s);
}

static inline uint32_t ssd1306_bmp_get_val(const uint8_t *data, const size_t offset, uint8_t size) {
    switch(size) {
    case 1:
        return data[offset];
    case 2:
        return data[offset]|(data[offset+1]<<8);
    case 4:
        return data[offset]|(data[offset+1]<<8)|(data[offset+2]<<16)|(data[offset+3]<<24);
    default:
        __builtin_unreachable();
    }
    __builtin_unreachable();
}

void ssd1306_bmp_show_image_with_offset(ssd1306_t *p, const uint8_t *data, const long size, uint32_t x_offset, uint32_t y_offset) {
    if(size<54) // data smaller than header
        return;

    const uint32_t bfOffBits=ssd1306_bmp_get_val(data, 10, 4);
    const uint32_t biSize=ssd1306_bmp_get_val(data, 14, 4);
    const uint32_t biWidth=ssd1306_bmp_get_val(data, 18, 4);
    const int32_t biHeight=(int32_t) ssd1306_bmp_get_val(data, 22, 4);
    const uint16_t biBitCount=(uint16_t) ssd1306_bmp_get_val(data, 28, 2);
    const uint32_t biCompression=ssd1306_bmp_get_val(data, 30, 4);

    if(biBitCount!=1) // image not monochrome
        return;

    if(biCompression!=0) // image compressed
        return;

    const int table_start=14+biSize;
    uint8_t color_val=0;

    for(uint8_t i=0; i<2; ++i) {
        if(!((data[table_start+i*4]<<16)|(data[table_start+i*4+1]<<8)|data[table_start+i*4+2])) {
            color_val=i;
            break;
        }
    }

    uint32_t bytes_per_line=(biWidth/8)+(biWidth&7?1:0);
    if(bytes_per_line&3)
        bytes_per_line=(bytes_per_line^(bytes_per_line&3))+4;

    const uint8_t *img_data=data+bfOffBits;

    int32_t step=biHeight>0?-1:1;
    int32_t border=biHeight>0?-1:-biHeight;

    for(uint32_t y=biHeight>0?biHeight-1:0; y!=(uint32_t)border; y+=step) {
        for(uint32_t x=0; x<biWidth; ++x) {
            if(((img_data[x>>3]>>(7-(x&7)))&1)==color_val)
                ssd1306_draw_pixel(p, x_offset+x, y_offset+y);
        }
        img_data+=bytes_per_line;
    }
}

inline void ssd1306_bmp_show_image(ssd1306_t *p, const uint8_t *data, const long size) {
    ssd1306_bmp_show_image_with_offset(p, data, size, 0, 0);
}

void ssd1306_show(ssd1306_t *p) {
    uint8_t payload[]= {SET_COL_ADDR, 0, p->width-1, SET_PAGE_ADDR, 0, p->pages-1};
    if(p->width==64) {
        payload[1]+=32;
        payload[2]+=32;
    }

    for(size_t i=0; i<sizeof(payload); ++i)
        ssd1306_write(p, payload[i]);

    *(p->buffer-1)=0x40;

    fancy_write(p->i2c_i, p->address, p->buffer-1, p->bufsize+1, "ssd1306_show");
}

/*
MIT License

Copyright (c) 2021 David Schramm

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
*/

/**
* @file ssd1306.h
*
* simple driver for ssd1306 displays
*/

#ifndef _inc_ssd1306
#define _inc_ssd1306
#include <pico/stdlib.h>
#include <hardware/i2c.h>

/**
*	@brief defines commands used in ssd1306
*/
typedef enum {
    SET_CONTRAST = 0x81,
    SET_ENTIRE_ON = 0xA4,
    SET_NORM_INV = 0xA6,
    SET_DISP = 0xAE,
    SET_MEM_ADDR = 0x20,
    SET_COL_ADDR = 0x21,
    SET_PAGE_ADDR = 0x22,
    SET_DISP_START_LINE = 0x40,
    SET_SEG_REMAP = 0xA0,
    SET_MUX_RATIO = 0xA8,
    SET_COM_OUT_DIR = 0xC0,
    SET_DISP_OFFSET = 0xD3,
    SET_COM_PIN_CFG = 0xDA,
    SET_DISP_CLK_DIV = 0xD5,
    SET_PRECHARGE = 0xD9,
    SET_VCOM_DESEL = 0xDB,
    SET_CHARGE_PUMP = 0x8D
} ssd1306_command_t;

/**
*	@brief holds the configuration
*/
typedef struct {
    uint8_t width; 		/**< width of display */
    uint8_t height; 	/**< height of display */
    uint8_t pages;		/**< stores pages of display (calculated on initialization*/
    uint8_t address; 	/**< i2c address of display*/
    i2c_inst_t *i2c_i; 	/**< i2c connection instance */
    bool external_vcc; 	/**< whether display uses external vcc */
    uint8_t *buffer;	/**< display buffer */
    size_t bufsize;		/**< buffer size */
} ssd1306_t;

/**
*	@brief initialize display
*
*	@param[in] p : pointer to instance of ssd1306_t
*	@param[in] width : width of display
*	@param[in] height : heigth of display
*	@param[in] address : i2c address of display
*	@param[in] i2c_instance : instance of i2c connection
*
* 	@return bool.
*	@retval true for Success
*	@retval false if initialization failed
*/
bool ssd1306_init(ssd1306_t *p, uint16_t width, uint16_t height, uint8_t address, i2c_inst_t *i2c_instance);

/**
*	@brief deinitialize display
*
*	@param[in] p : instance of display
*
*/
void ssd1306_deinit(ssd1306_t *p);

/**
*	@brief turn off display
*
*	@param[in] p : instance of display
*
*/
void ssd1306_poweroff(ssd1306_t *p);

/**
	@brief turn on display

	@param[in] p : instance of display

*/
void ssd1306_poweron(ssd1306_t *p);

/**
	@brief set contrast of display

	@param[in] p : instance of display
	@param[in] val : contrast

*/
void ssd1306_contrast(ssd1306_t *p, uint8_t val);

/**
	@brief set invert display

	@param[in] p : instance of display
	@param[in] inv : inv==0: disable inverting, inv!=0: invert

*/
void ssd1306_invert(ssd1306_t *p, uint8_t inv);

/**
	@brief display buffer, should be called on change

	@param[in] p : instance of display

*/
void ssd1306_show(ssd1306_t *p);

/**
	@brief clear display buffer

	@param[in] p : instance of display

*/
void ssd1306_clear(ssd1306_t *p);

/**
	@brief clear pixel on buffer

	@param[in] p : instance of display
	@param[in] x : x position
	@param[in] y : y position
*/
void ssd1306_clear_pixel(ssd1306_t *p, uint32_t x, uint32_t y);

/**
	@brief draw pixel on buffer

	@param[in] p : instance of display
	@param[in] x : x position
	@param[in] y : y position
*/
void ssd1306_draw_pixel(ssd1306_t *p, uint32_t x, uint32_t y);

/**
	@brief draw line on buffer

	@param[in] p : instance of display
	@param[in] x1 : x position of starting point
	@param[in] y1 : y position of starting point
	@param[in] x2 : x position of end point
	@param[in] y2 : y position of end point
*/
void ssd1306_draw_line(ssd1306_t *p, int32_t x1, int32_t y1, int32_t x2, int32_t y2);

/**
	@brief clear square at given position with given size

	@param[in] p : instance of display
	@param[in] x : x position of starting point
	@param[in] y : y position of starting point
	@param[in] width : width of square
	@param[in] height : height of square
*/
void ssd1306_clear_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height);

/**
	@brief draw filled square at given position with given size

	@param[in] p : instance of display
	@param[in] x : x position of starting point
	@param[in] y : y position of starting point
	@param[in] width : width of square
	@param[in] height : height of square
*/
void ssd1306_draw_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height);

/**
	@brief draw empty square at given position with given size

	@param[in] p : instance of display
	@param[in] x : x position of starting point
	@param[in] y : y position of starting point
	@param[in] width : width of square
	@param[in] height : height of square
*/
void ssd1306_draw_empty_square(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t width, uint32_t height);

/**
	@brief draw monochrome bitmap with offset

	@param[in] p : instance of display
	@param[in] data : image data (whole file)
	@param[in] size : size of image data in bytes
	@param[in] x_offset : offset of horizontal coordinate
	@param[in] y_offset : offset of vertical coordinate
*/
void ssd1306_bmp_show_image_with_offset(ssd1306_t *p, const uint8_t *data, const long size, uint32_t x_offset, uint32_t y_offset);

/**
	@brief draw monochrome bitmap

	@param[in] p : instance of display
	@param[in] data : image data (whole file)
	@param[in] size : size of image data in bytes
*/
void ssd1306_bmp_show_image(ssd1306_t *p, const uint8_t *data, const long size);

/**
	@brief draw char with given font

	@param[in] p : instance of display
	@param[in] x : x starting position of char
	@param[in] y : y starting position of char
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] font : pointer to font
	@param[in] c : character to draw
*/
void ssd1306_draw_char_with_font(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint8_t *font, char c);

/**
	@brief draw char with builtin font

	@param[in] p : instance of display
	@param[in] x : x starting position of char
	@param[in] y : y starting position of char
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] c : character to draw
*/
void ssd1306_draw_char(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, char c);

/**
	@brief draw string with given font

	@param[in] p : instance of display
	@param[in] x : x starting position of text
	@param[in] y : y starting position of text
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] font : pointer to font
	@param[in] s : text to draw
*/
void ssd1306_draw_string_with_font(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint8_t *font, const char *s );

/**
	@brief draw string with builtin font

	@param[in] p : instance of display
	@param[in] x : x starting position of text
	@param[in] y : y starting position of text
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] s : text to draw
*/
void ssd1306_draw_string(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const char *s);

// for fonts 16x8 we must use unit16_t
/**
	@brief draw char with given font

	@param[in] p : instance of display
	@param[in] x : x starting position of char
	@param[in] y : y starting position of char
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] font : pointer to font 16x8
	@param[in] c : character to draw
*/
void ssd1306_draw_char_with_font16(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint16_t *font, char c);

/**
	@brief draw string with given font

	@param[in] p : instance of display
	@param[in] x : x starting position of text
	@param[in] y : y starting position of text
	@param[in] scale : scale font to n times of original size (default should be 1)
	@param[in] font : pointer to font
	@param[in] s : text to draw
*/
void ssd1306_draw_string_with_font16(ssd1306_t *p, uint32_t x, uint32_t y, uint32_t scale, const uint16_t *font, const char *s );

#endif

#ifndef _inc_font
#define _inc_font

/*
 * Format
 * <height>, <width>, <additional spacing per char>,
 * <first ascii char>, <last ascii char>,
 * <data>
 */
const uint8_t font_8x5[] =
{
			8, 5, 1, 32, 127,
			0x00, 0x00, 0x00, 0x00, 0x00,   // mezera
			0x00, 0x00, 0x5F, 0x00, 0x00,   // ! vykřičník
			0x00, 0x07, 0x00, 0x07, 0x00,   // "
			0x14, 0x7F, 0x14, 0x7F, 0x14,   // #
			0x24, 0x2A, 0x7F, 0x2A, 0x12,   // $
			0x23, 0x13, 0x08, 0x64, 0x62,   // %
			0x36, 0x49, 0x56, 0x20, 0x50,   // &
			0x00, 0x08, 0x07, 0x03, 0x00,   // '
			0x00, 0x1C, 0x22, 0x41, 0x00,   // (
			0x00, 0x41, 0x22, 0x1C, 0x00,   // )
			0x2A, 0x1C, 0x7F, 0x1C, 0x2A,   // *
			0x08, 0x08, 0x3E, 0x08, 0x08,   // +
			0x00, 0x80, 0x70, 0x30, 0x00,   // ,
			0x08, 0x08, 0x08, 0x08, 0x08,   // -
			0x00, 0x00, 0x60, 0x60, 0x00,   // .
			0x20, 0x10, 0x08, 0x04, 0x02,   // /
			0x3E, 0x51, 0x49, 0x45, 0x3E,   // 0
			0x00, 0x42, 0x7F, 0x40, 0x00,   // 1
			0x72, 0x49, 0x49, 0x49, 0x46,   // 2
			0x21, 0x41, 0x49, 0x4D, 0x33,   // 3
			0x18, 0x14, 0x12, 0x7F, 0x10,   // 4
			0x27, 0x45, 0x45, 0x45, 0x39,   // 5
			0x3C, 0x4A, 0x49, 0x49, 0x31,   // 6
			0x41, 0x21, 0x11, 0x09, 0x07,   // 7
			0x36, 0x49, 0x49, 0x49, 0x36,   // 8
			0x46, 0x49, 0x49, 0x29, 0x1E,   // 9
			0x00, 0x00, 0x14, 0x00, 0x00,   // :
			0x00, 0x40, 0x34, 0x00, 0x00,   // ;
			0x00, 0x08, 0x14, 0x22, 0x41,   // <
			0x14, 0x14, 0x14, 0x14, 0x14,   // =
			0x00, 0x41, 0x22, 0x14, 0x08,   // >
			0x02, 0x01, 0x59, 0x09, 0x06,   // ?
			0x3E, 0x41, 0x5D, 0x59, 0x4E,   // @
			0x7C, 0x12, 0x11, 0x12, 0x7C,   // A
			0x7F, 0x49, 0x49, 0x49, 0x36,   // B
			0x3E, 0x41, 0x41, 0x41, 0x22,   // C
			0x7F, 0x41, 0x41, 0x41, 0x3E,   // D
			0x7F, 0x49, 0x49, 0x49, 0x41,   // E
			0x7F, 0x09, 0x09, 0x09, 0x01,   // F
			0x3E, 0x41, 0x41, 0x51, 0x73,   // G
			0x7F, 0x08, 0x08, 0x08, 0x7F,   // H
			0x00, 0x41, 0x7F, 0x41, 0x00,   // I
			0x20, 0x40, 0x41, 0x3F, 0x01,   // J
			0x7F, 0x08, 0x14, 0x22, 0x41,   // K
			0x7F, 0x40, 0x40, 0x40, 0x40,   // L
			0x7F, 0x02, 0x1C, 0x02, 0x7F,   // M
			0x7F, 0x04, 0x08, 0x10, 0x7F,   // N
			0x3E, 0x41, 0x41, 0x41, 0x3E,   // O
			0x7F, 0x09, 0x09, 0x09, 0x06,   // P
			0x3E, 0x41, 0x51, 0x21, 0x5E,   // Q
			0x7F, 0x09, 0x19, 0x29, 0x46,   // R
			0x26, 0x49, 0x49, 0x49, 0x32,   // S
			0x03, 0x01, 0x7F, 0x01, 0x03,   // T
			0x3F, 0x40, 0x40, 0x40, 0x3F,   // U
			0x1F, 0x20, 0x40, 0x20, 0x1F,   // V
			0x3F, 0x40, 0x38, 0x40, 0x3F,   // W
			0x63, 0x14, 0x08, 0x14, 0x63,   // X
			0x03, 0x04, 0x78, 0x04, 0x03,   // Y
			0x61, 0x51, 0x49, 0x45, 0x43,   // Z
			0x00, 0x7F, 0x41, 0x41, 0x41,   // [
			0x02, 0x04, 0x08, 0x10, 0x20,   // "\"
			0x00, 0x41, 0x41, 0x41, 0x7F,   // ]
			0x04, 0x02, 0x01, 0x02, 0x04,   // ^
			0x40, 0x40, 0x40, 0x40, 0x40,   // _ podtržítko
			0x00, 0x03, 0x07, 0x08, 0x00,   // `
			0x20, 0x54, 0x54, 0x78, 0x40,   // a
			0x7F, 0x28, 0x44, 0x44, 0x38,   // b
			0x38, 0x44, 0x44, 0x44, 0x28,   // c
			0x38, 0x44, 0x44, 0x28, 0x7F,   // d
			0x38, 0x54, 0x54, 0x54, 0x18,   // e
			0x00, 0x08, 0x7E, 0x09, 0x02,   // f
			0x18, 0xA4, 0xA4, 0x9C, 0x78,   // g
			0x7F, 0x08, 0x04, 0x04, 0x78,   // h
			0x00, 0x44, 0x7D, 0x40, 0x00,   // i
			0x20, 0x40, 0x40, 0x3D, 0x00,   // j
			0x7F, 0x10, 0x28, 0x44, 0x00,   // k
			0x00, 0x41, 0x7F, 0x40, 0x00,   // l
			0x7C, 0x04, 0x78, 0x04, 0x78,   // m
			0x7C, 0x08, 0x04, 0x04, 0x78,   // n
			0x38, 0x44, 0x44, 0x44, 0x38,   // o
			0xFC, 0x18, 0x24, 0x24, 0x18,   // p
			0x18, 0x24, 0x24, 0x18, 0xFC,   // q
			0x7C, 0x08, 0x04, 0x04, 0x08,   // r
			0x48, 0x54, 0x54, 0x54, 0x24,   // s
			0x04, 0x04, 0x3F, 0x44, 0x24,   // t
			0x3C, 0x40, 0x40, 0x20, 0x7C,   // u
			0x1C, 0x20, 0x40, 0x20, 0x1C,   // v
			0x3C, 0x40, 0x30, 0x40, 0x3C,   // w
			0x44, 0x28, 0x10, 0x28, 0x44,   // x
			0x4C, 0x90, 0x90, 0x90, 0x7C,   // y
			0x44, 0x64, 0x54, 0x4C, 0x44,   // z
			0x00, 0x08, 0x36, 0x41, 0x00,   // {
			0x00, 0x00, 0x77, 0x00, 0x00,   // |
			0x00, 0x41, 0x36, 0x08, 0x00,   // }
			0x02, 0x01, 0x02, 0x04, 0x02,   // ~
			0x00, 0x00, 0x00, 0x00, 0x00,   //
};

#endif
