Měření rychlých jevů pomocí DMA a ADC

cmake_minimum_required(VERSION 3.13)
include($ENV{PICO_SDK_PATH}/external/pico_sdk_import.cmake)

project(adc_dma_capture C CXX ASM)
set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

pico_sdk_init()


add_executable(adc_dma_capture
        dma_capture.c
        )

pico_generate_pio_header(adc_dma_capture ${CMAKE_CURRENT_LIST_DIR}/resistor_dac.pio)

target_link_libraries(adc_dma_capture
		pico_stdlib
		hardware_adc
		hardware_dma
		# For the dummy output:
		hardware_pio
		pico_multicore
		)

pico_enable_stdio_usb(adc_dma_capture 1)
pico_enable_stdio_uart(adc_dma_capture 0)

# create map/bin/hex file etc.
pico_add_extra_outputs(adc_dma_capture)

/**
 * Copyright (c) 2021 Raspberry Pi (Trading) Ltd.
 *
 * SPDX-License-Identifier: BSD-3-Clause
 */

#include <stdio.h>
#include <math.h>
#include "pico/stdlib.h"
// For ADC input:
#include "hardware/adc.h"
#include "hardware/dma.h"
// For resistor DAC output:
#include "pico/multicore.h"
#include "hardware/pio.h"
#include "resistor_dac.pio.h"

// This example uses the DMA to capture many samples from the ADC.
//
// - We are putting the ADC in free-running capture mode at 0.5 Msps
//
// - A DMA channel will be attached to the ADC sample FIFO
//
// - Configure the ADC to right-shift samples to 8 bits of significance, so we
//   can DMA into a byte buffer
//
// This could be extended to use the ADC's round robin feature to sample two
// channels concurrently at 0.25 Msps each.
//

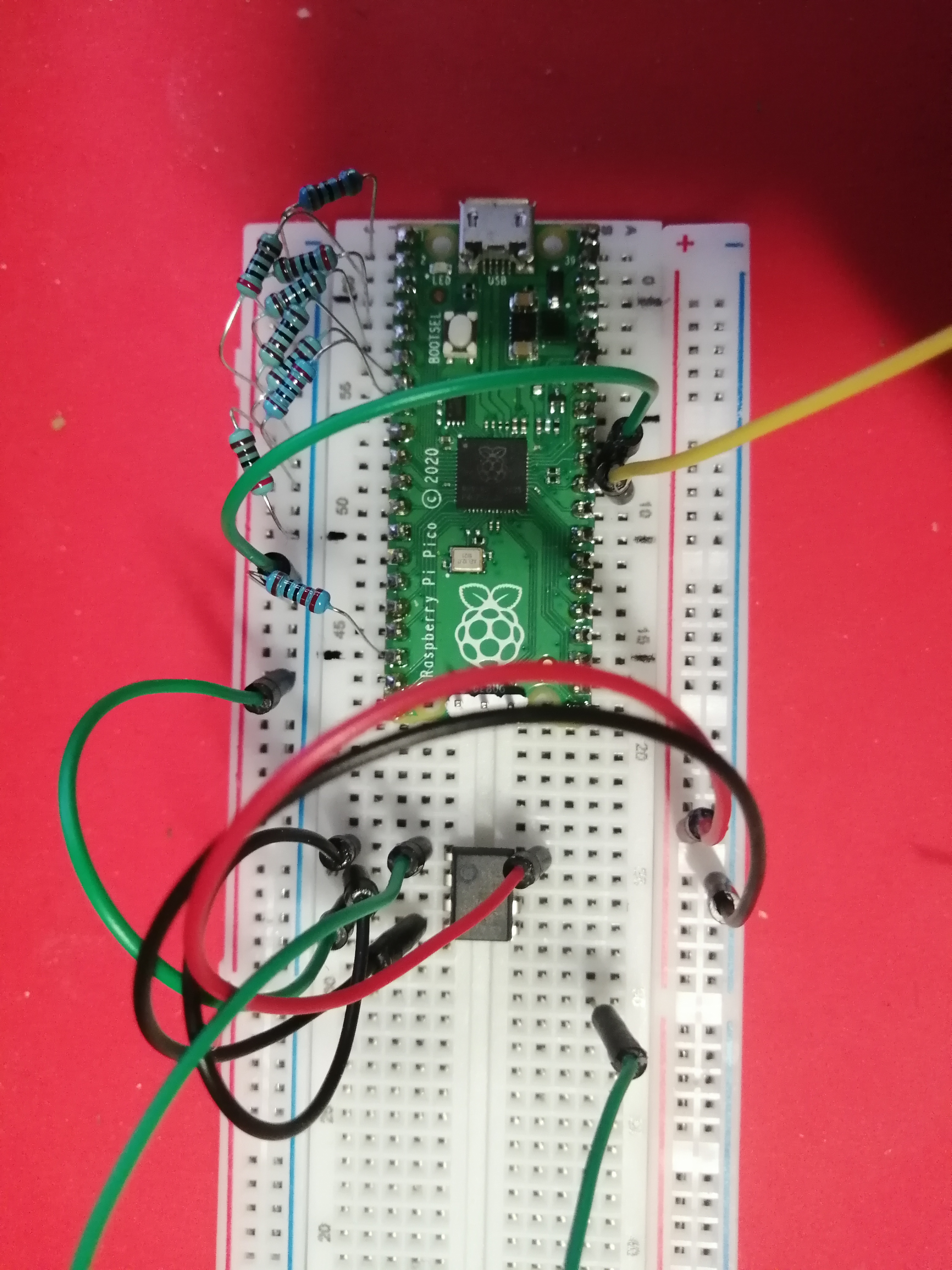

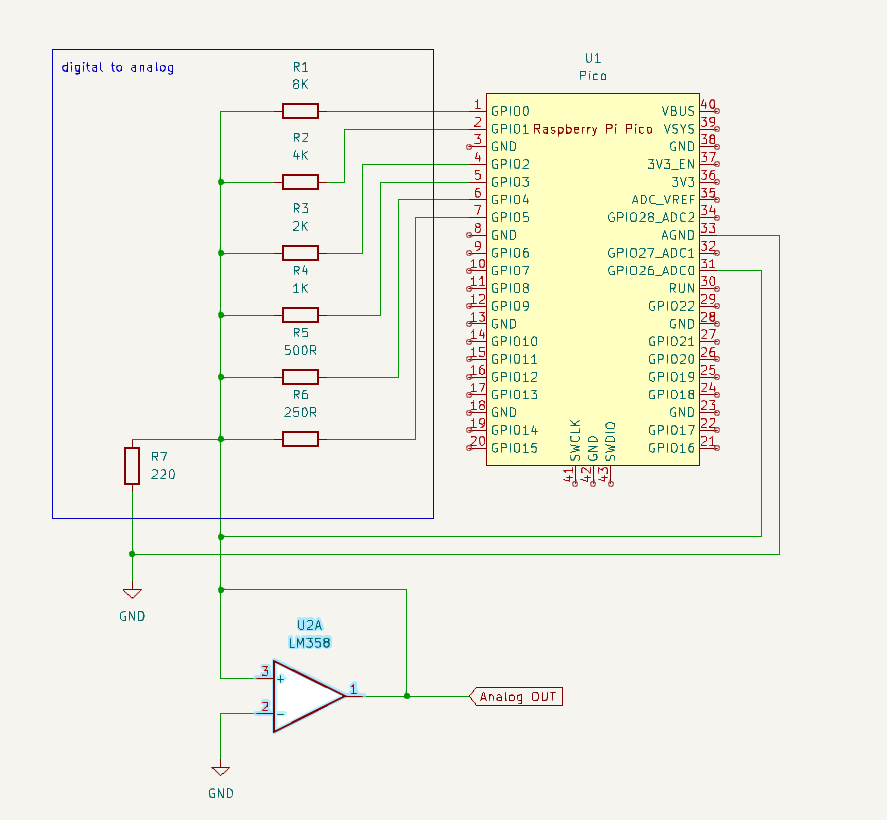

// It would be nice to have some analog samples to measure! This example also
// drives waves out through a 5-bit resistor DAC, as found on the reference
// VGA board. If you have that board, you can take an M-F jumper wire from
// GPIO 26 to the Green pin on the VGA connector (top row, next-but-rightmost
// hole). Or you can ignore that part of the code and connect your own signal
// to the ADC input.

// Channel 0 is GPIO26
#define CAPTURE_CHANNEL 0
#define CAPTURE_DEPTH 2000

#define ADC_VREF        3.3*2
#define ADC_RANGE       (1<<8)
#define ADC_CONVERT     (ADC_VREF / (ADC_RANGE - 1))

#define PI  3.1415926
uint8_t capture_buf[CAPTURE_DEPTH];

void core1_main();

int main() {
    stdio_init_all();
    sleep_ms(2000);
    // printf("\n\nDMA capture\n---------------------------------------------\n\n");


    // Send core 1 off to start driving the "DAC" whilst we configure the ADC.
    multicore_launch_core1(core1_main);

    // Init GPIO for analogue use: hi-Z, no pulls, disable digital input buffer.
    adc_gpio_init(26 + CAPTURE_CHANNEL);

    adc_init();
    adc_select_input(CAPTURE_CHANNEL);
    adc_fifo_setup(
        true,    // Write each completed conversion to the sample FIFO
        true,    // Enable DMA data request (DREQ)
        1,       // DREQ (and IRQ) asserted when at least 1 sample present
        false,   // We won't see the ERR bit because of 8 bit reads; disable.
        true     // Shift each sample to 8 bits when pushing to FIFO
    );

    // Divisor of 0 -> full speed. Free-running capture with the divider is
    // equivalent to pressing the ADC_CS_START_ONCE button once per `div + 1`
    // cycles (div not necessarily an integer). Each conversion takes 96
    // cycles, so in general you want a divider of 0 (hold down the button
    // continuously) or > 95 (take samples less frequently than 96 cycle
    // intervals). This is all timed by the 48 MHz ADC clock.
    adc_set_clkdiv(0);

    // printf("Arming DMA\n");
    sleep_ms(1000);

    // Set up the DMA to start transferring data as soon as it appears in FIFO
    uint dma_chan = dma_claim_unused_channel(true);
    dma_channel_config cfg = dma_channel_get_default_config(dma_chan);

    // Reading from constant address, writing to incrementing byte addresses
    channel_config_set_transfer_data_size(&cfg, DMA_SIZE_8);
    channel_config_set_read_increment(&cfg, false);
    channel_config_set_write_increment(&cfg, true);

    // Pace transfers based on availability of ADC samples
    channel_config_set_dreq(&cfg, DREQ_ADC);

    dma_channel_configure(dma_chan, &cfg,
        capture_buf,    // dst
        &adc_hw->fifo,  // src
        CAPTURE_DEPTH,  // transfer count
        true            // start immediately
    );

    // printf("Starting capture\n");
    adc_run(true);

    // Once DMA finishes, stop any new conversions from starting, and clean up
    // the FIFO in case the ADC was still mid-conversion.
    dma_channel_wait_for_finish_blocking(dma_chan);
    // printf("Capture finished\n");
    adc_run(false);
    adc_fifo_drain();

    // Print samples to stdout so you can display them in pyplot, excel, matlab
    for (int i = 0; i < CAPTURE_DEPTH; ++i) {
        printf("%.2f\n", capture_buf[i] * ADC_CONVERT);
        sleep_ms(10);
        // if (i % 10 == 9)
            // printf("\n");
    }
}

// ----------------------------------------------------------------------------
// Code for driving the "DAC" output for us to measure

// Core 1 is just going to sit and drive samples out continuously. PIO provides
// consistent sample frequency.

#define OUTPUT_FREQ_KHZ 5
#define SAMPLE_WIDTH 5
// This is the green channel on the VGA board
#define DAC_PIN_BASE 0

void core1_main() {
    PIO pio = pio0;
    uint sm = pio_claim_unused_sm(pio0, true);
    uint offset = pio_add_program(pio0, &resistor_dac_5bit_program);
    resistor_dac_5bit_program_init(pio0, sm, offset,
        OUTPUT_FREQ_KHZ * 1000 * 2 * (1 << SAMPLE_WIDTH), DAC_PIN_BASE);
    while (true) {
        // Triangle wave
        for (int i = 0; i < (1 << SAMPLE_WIDTH); ++i)
            pio_sm_put_blocking(pio, sm, i);
        for (int i = 0; i < (1 << SAMPLE_WIDTH); ++i)
            pio_sm_put_blocking(pio, sm, (1 << SAMPLE_WIDTH) - 1 - i);

        // Sinus
        // for(int i = 0; ; ++i) {
        //     int j = (sin(PI*i/360)+1)*(32);
        //     pio_sm_put_blocking(pio, sm, j);
        // }
    }
}

;
; Copyright (c) 2021 Raspberry Pi (Trading) Ltd.
;
; SPDX-License-Identifier: BSD-3-Clause
;

.program resistor_dac_5bit

; Drive one of the 5-bit resistor DACs on the VGA reference board. (this isn't
; a good way to do VGA -- just want a nice sawtooth for the ADC example!)

    out pins, 6



% c-sdk {
#include "hardware/clocks.h"
static inline void resistor_dac_5bit_program_init(PIO pio, uint sm, uint offset,
        uint sample_rate_hz, uint pin_base) {

    pio_sm_set_pins_with_mask(pio, sm, 0, 0x1fu << pin_base);
    pio_sm_set_pindirs_with_mask(pio, sm, ~0u, 0x1fu << pin_base);
    for (int i = 0; i < 6; ++i)
        pio_gpio_init(pio, pin_base + i);

    pio_sm_config c = resistor_dac_5bit_program_get_default_config(offset);
    sm_config_set_out_pins(&c, pin_base, 6);
    // Shift to right, autopull threshold 5
    sm_config_set_out_shift(&c, true, true, 6);
    // Deeper FIFO as we're not doing any RX
    sm_config_set_fifo_join(&c, PIO_FIFO_JOIN_TX);
    float div = (float)clock_get_hz(clk_sys) / sample_rate_hz;
    sm_config_set_clkdiv(&c, div);

    pio_sm_init(pio, sm, offset, &c);
    pio_sm_set_enabled(pio, sm, true);
}
%}

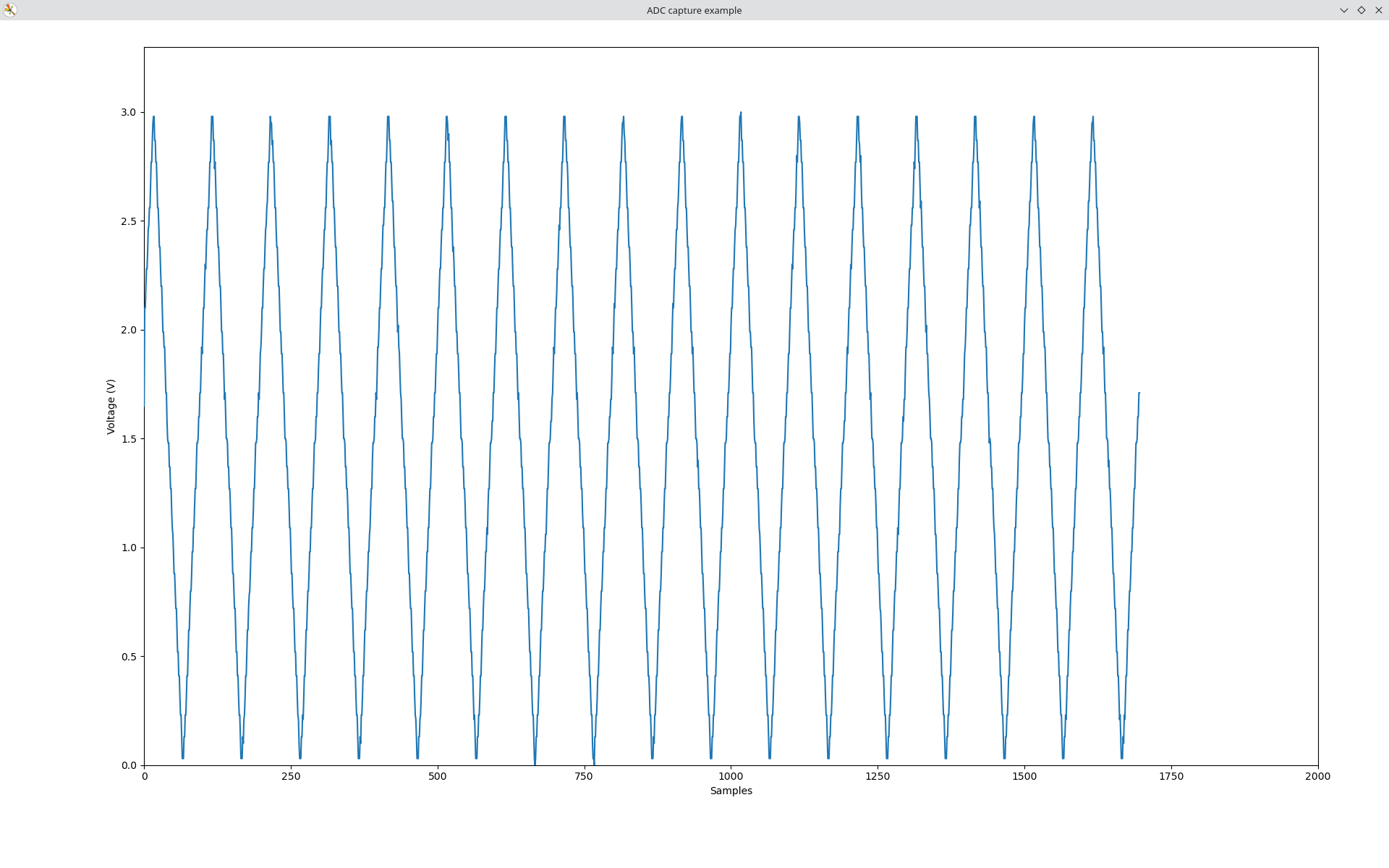

#!/usr/bin/env python3

# Grabs raw data from the Pico's UART and plots it as received

# Install dependencies:
# python3 -m pip install pyserial matplotlib

# Usage: python3 plotter <port>
# eg. python3 plotter /dev/ttyACM0

# see matplotlib animation API for more: https://matplotlib.org/stable/api/animation_api.html

import serial
import sys
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from matplotlib.lines import Line2D

# disable toolbar
plt.rcParams['toolbar'] = 'None'

class Plotter:
    def __init__(self, ax):
        self.ax = ax
        self.maxt = 2000
        self.tdata = [0]
        self.ydata = [3.3/2]
        self.line = Line2D(self.tdata, self.ydata)

        self.ax.add_line(self.line)
        self.ax.set_ylim(0, 3.3)
        self.ax.set_xlim(0, self.maxt)

    def update(self, y):
        lastt = self.tdata[-1]
        if lastt - self.tdata[0] >= self.maxt:  # drop old frames
            self.tdata = self.tdata[1:]
            self.ydata = self.ydata[1:]
            self.ax.set_xlim(self.tdata[0], self.tdata[0] + self.maxt)

        t = lastt + 1
        self.tdata.append(t)
        self.ydata.append(y)
        self.line.set_data(self.tdata, self.ydata)
        return self.line,


def serial_getter():
    # grab fresh ADC values
    # note sometimes UART drops chars so we try a max of 5 times
    # to get proper data
    while True:
        for i in range(5):
            line = ser.readline()
            try:
                line = float(line)
            except ValueError:
                continue
            break
        yield line

if len(sys.argv) < 2:
    raise Exception("Ruh roh..no port specified!")

ser = serial.Serial(sys.argv[1], 115200, timeout=1)

fig, ax = plt.subplots()
plotter = Plotter(ax)

ani = animation.FuncAnimation(fig, plotter.update, serial_getter, interval=1,
                              blit=True, cache_frame_data=False)

ax.set_xlabel("Samples")
ax.set_ylabel("Voltage (V)")
fig.canvas.manager.set_window_title('ADC capture example')
fig.tight_layout()
plt.show()
