VGA driver pro Pico řízený PIO a DMA

pull block              ; Pull from FIFO to OSR (only happens once)
.wrap_target            ; Program wraps to here

; ACTIVE + FRONTPORCH
mov x, osr              ; Copy value from OSR to x scratch register
activeporch:
   jmp x-- activeporch  ; Remain high in active mode and front porch

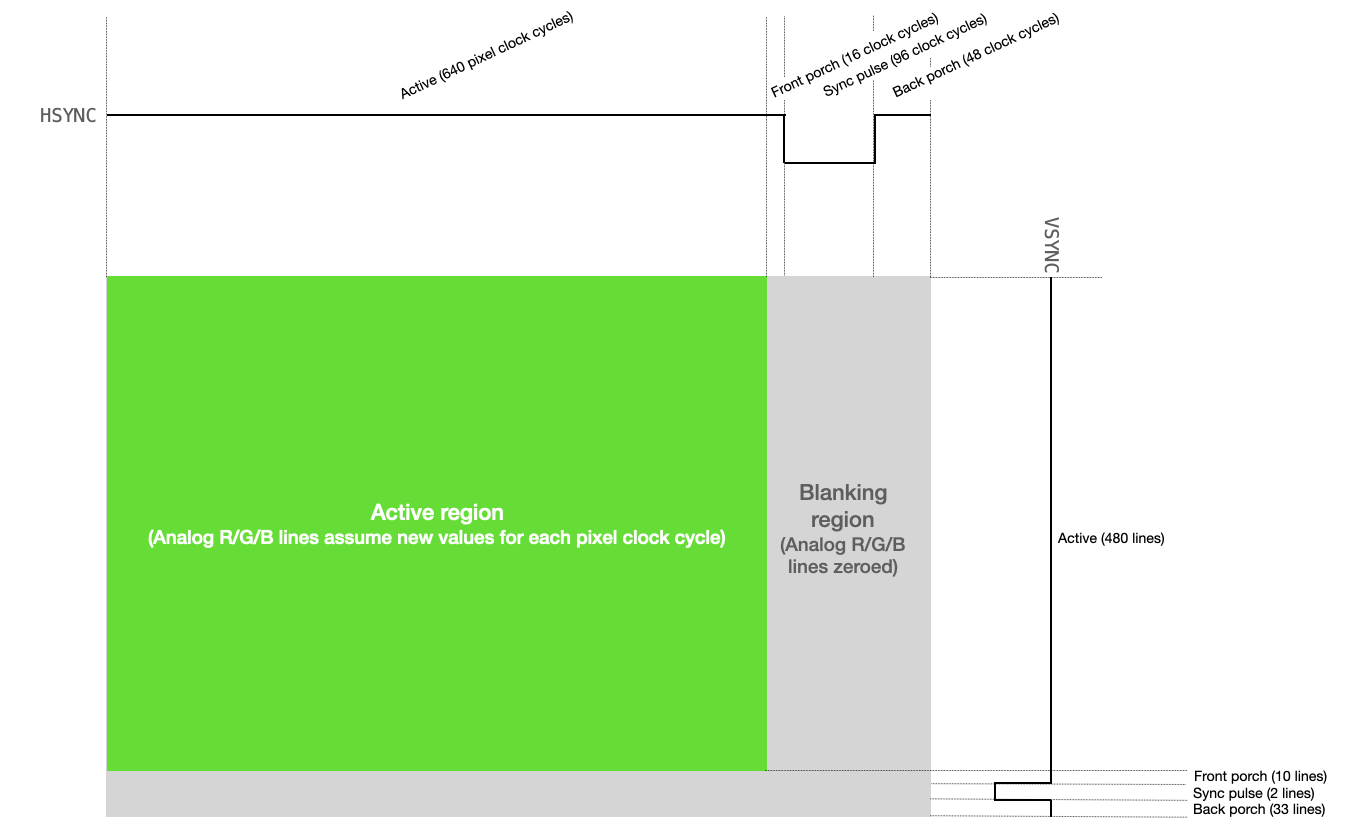

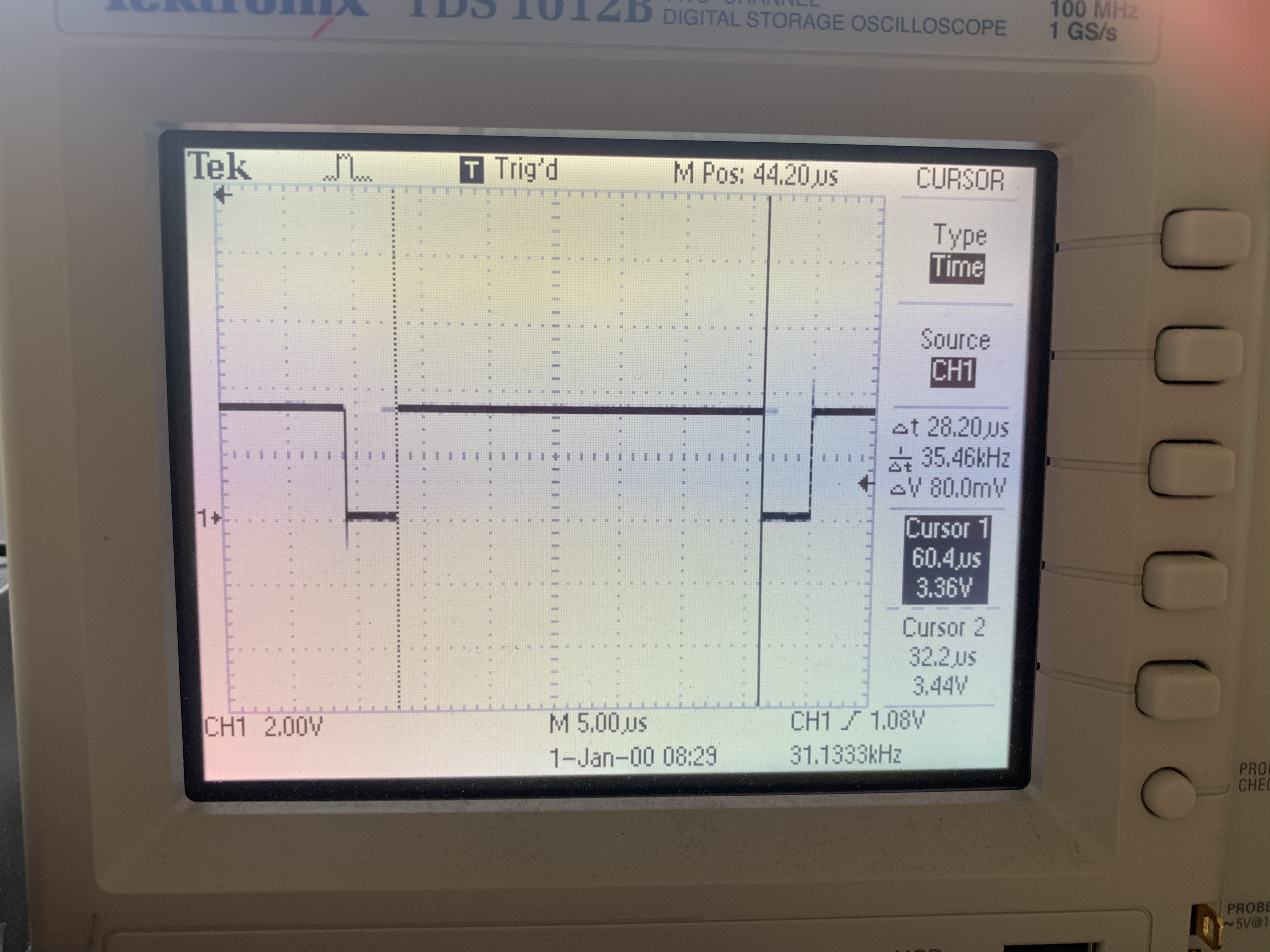

; SYNC PULSE
pulse:
    set pins, 0 [31]    ; Low for hsync pulse (32 cycles)
    set pins, 0 [31]    ; Low for hsync pulse (64 cycles)
    set pins, 0 [31]    ; Low for hsync pulse (96 cycles)

; BACKPORCH
backporch:
    set pins, 1 [31]    ; High for back porch (32 cycles)
    set pins, 1 [12]    ; High for back porch (45 cycles)
    irq 0       [1]     ; Set IRQ to signal end of line (47 cycles)
.wrap

pull block                        ; Načíteme z FIFO do OSR (pouze jednou)
.wrap_target                      ; Sem se bude program cyklit

; ACTIVE
mov x, osr                        ; Kopíruje se hodnota z OSR do prázdného registru x
active:
    wait 1 irq 0                  ; Čekáme, až hsync přejde na vysokou úroveň
    irq 1                         ; Signalizujeme, že jsme v aktivním režimu
    jmp x-- active                ; Zůstáváme v aktivním režimu a snižujeme čítač x

; FRONTPORCH
set y, 9                          ; Použijeme registr y jako čítač
frontporch:
    wait 1 irq 0                  ; Čekáme, až hsync přejde na vysokou úroveň
    jmp y-- frontporch            ; Zůstáváme ve frontporch a snižujeme čítač y

; SYNC PULSE
set pins, 0                       ; Nastavíme pin na nízkou úroveň
wait 1 irq 0                      ; Čekáme jeden VGA řádek
wait 1 irq 0                      ; Čekáme ještě jeden VGA řádek

; BACKPORCH
set y, 31                         ; First part of back porch into y scratch register (and delays a cycle)
backporch:
    wait 1 irq 0   side 1         ; Čekáme až se hsync dostane na vysokou úroveň - SIDESET REPLACEMENT HERE
    jmp y-- backporch             ; Zůstáváme v backporch a snižujeme čítač y

.wrap                             ; program odtud skočí na .wrap_target

pull block          ; Načíteme z FIFO do OSR (pouze jednou)
mov y, osr          ; Zkopírujeme hodnotu z OSR do pomocného registru y
.wrap_target

set pins, 0         ; Vynulovat RGB piny
mov x, y            ; Inicializujeme proměnnou x čítače

wait 1 irq 1 [3]    ; Čekáme na aktivní režim vsync (spustí se 5 cyklů po provedení)

colorout:
pull block          ; Načteme hodnotu barvy
out pins, 3 [4]     ; hodnoty dáme na piny (první pixel)
out pins, 3 [2]     ; hodnoty dáme na piny (další pixel)
jmp x-- colorout    ; Opakujeme cyklus až do vyčerpání čítače x

.wrap

// Kanály DMA - kanál 0 odesílá data o barvě, kanál 1 překonfiguruje a restartuje kanál 0
int rgb_chan_0 = 0;
int rgb_chan_1 = 1;

// Kanál nula (odesílá barevná data do počítače PIO VGA)
dma_channel_config c0 = dma_channel_get_default_config(rgb_chan_0); // výchozí konfigurace
channel_config_set_transfer_data_size(&c0, DMA_SIZE_8);             // 8bitové převodníky
channel_config_set_read_increment(&c0, true);                       // inkrementace adresu čtení
channel_config_set_write_increment(&c0, false);                     // neinkrementujeme adresu zápisu
channel_config_set_dreq(&c0, DREQ_PIO0_TX2);                        // DREQ_PIO0_TX2 (FIFO)
channel_config_set_chain_to(&c0, rgb_chan_1);                       // řetězení k kanálu 1

dma_channel_configure(
    rgb_chan_0,         // Kanál ke konfiguraci
    &c0,                // Konfigurace, kterou jsme právě vytvořili
    &pio->txf[rgb_sm],  // adresa zápisu (RGB PIO TX FIFO)
    &vga_data_array,    // Počáteční adresa pro čtení (pole barev pixelů)
    TXCOUNT,            // Počet přenosů; v tomto případě každý má 1 bajt.
    false               // Nezačínat ihned.
);

// Kanál jedna (překonfiguruje kanál 0)
dma_channel_config c1 = dma_channel_get_default_config(rgb_chan_1); // výchozí konfigurace
channel_config_set_transfer_data_size(&c1, DMA_SIZE_32);            // 32bitové převodníky
channel_config_set_read_increment(&c1, false);                      // žádné zvyšování čtení
channel_config_set_write_increment(&c1, false);                     // žádné zvyšování zápisu
channel_config_set_chain_to(&c1, rgb_chan_0);                       // řetězení na kanál 0

dma_channel_configure(
    rgb_chan_1,                         // Kanál ke konfiguraci
    &c1,                                // Konfigurace, kterou jsme právě vytvořili
    &dma_hw->ch[rgb_chan_0].read_addr,  // Adresa zápisu (adresa pro čtení kanálu 0)
    &address_pointer,                   // Adresa pro čtení (UKAZATEL NA ADRESU)
    1,                                  // Počet přenosů, v tomto případě každý má 4 bajty
    false                               // Nezačínat ihned.
);

/**
 * Hunter Adams (vha3@cornell.edu)
 *
 * VGA driver using PIO assembler
 *

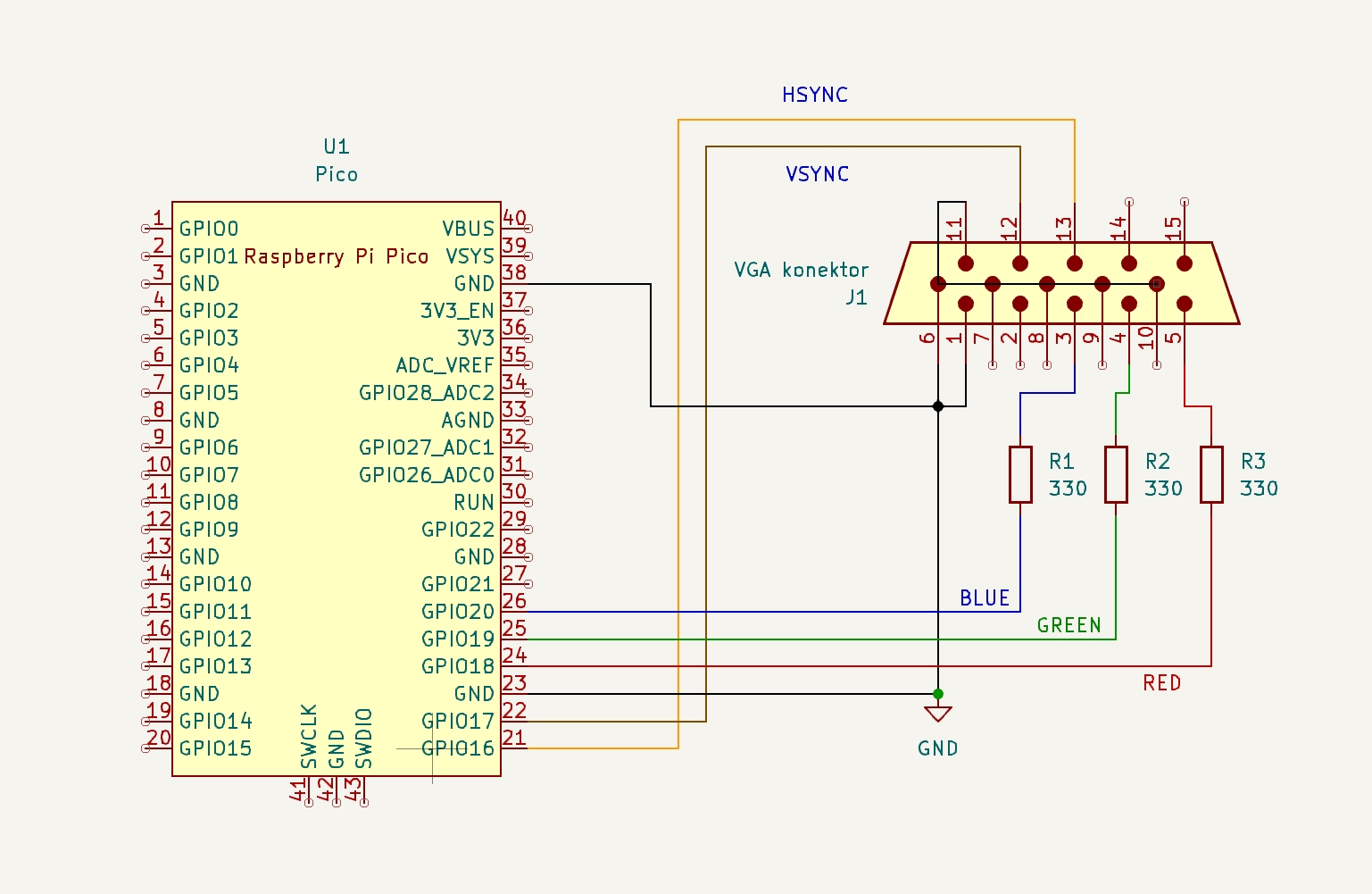

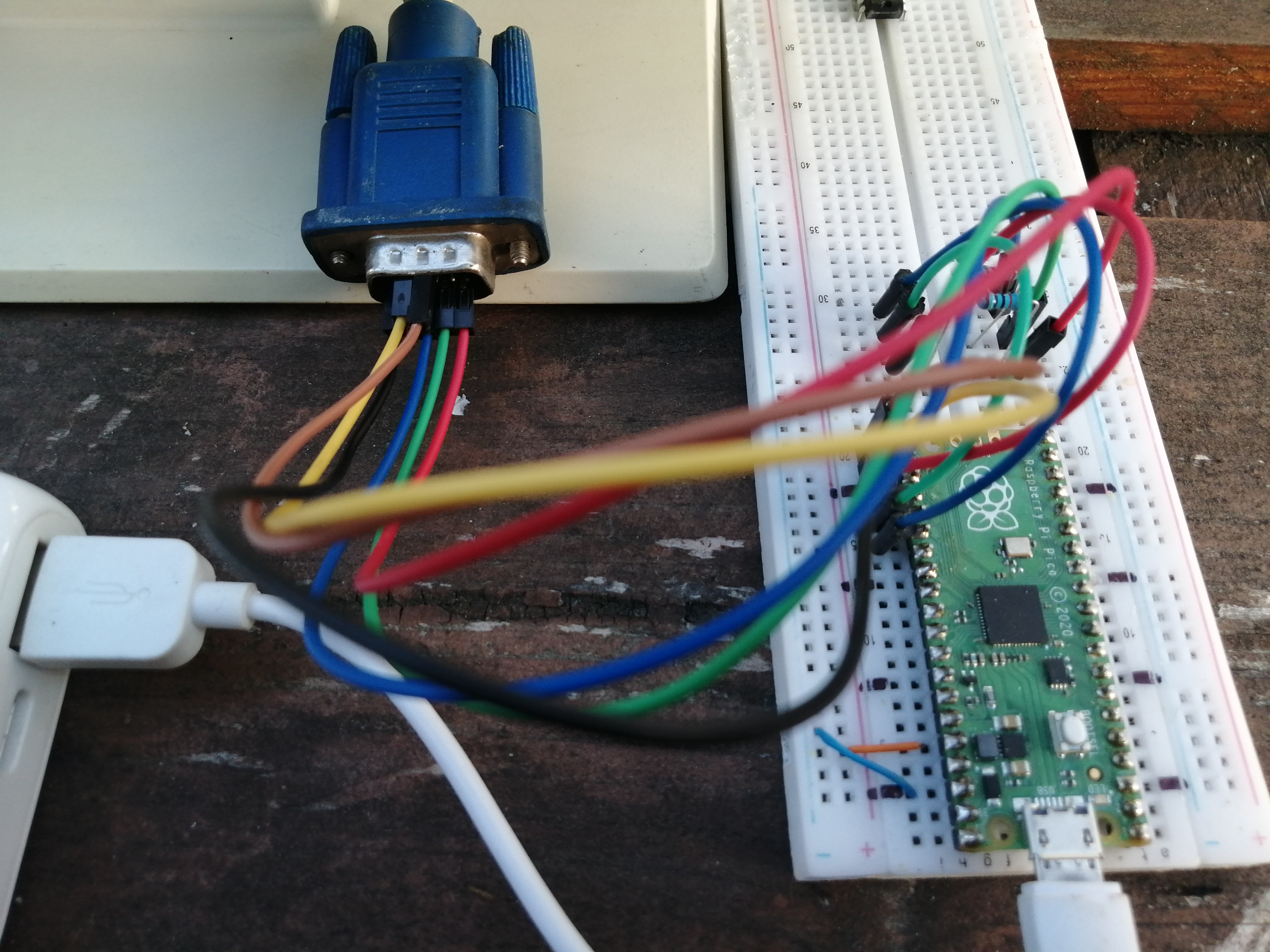

 * HARDWARE CONNECTIONS
 *  - GPIO 16 ---> VGA Hsync
 *  - GPIO 17 ---> VGA Vsync
 *  - GPIO 18 ---> 330 ohm resistor ---> VGA Red
 *  - GPIO 19 ---> 330 ohm resistor ---> VGA Green
 *  - GPIO 20 ---> 330 ohm resistor ---> VGA Blue
 *  - RP2040 GND ---> VGA GND
 *
 * RESOURCES USED
 *  - PIO state machines 0, 1, and 2 on PIO instance 0
 *  - DMA channels 0 and 1
 *  - 153.6 kBytes of RAM (for pixel color data)
 *
 * HOW TO USE THIS CODE

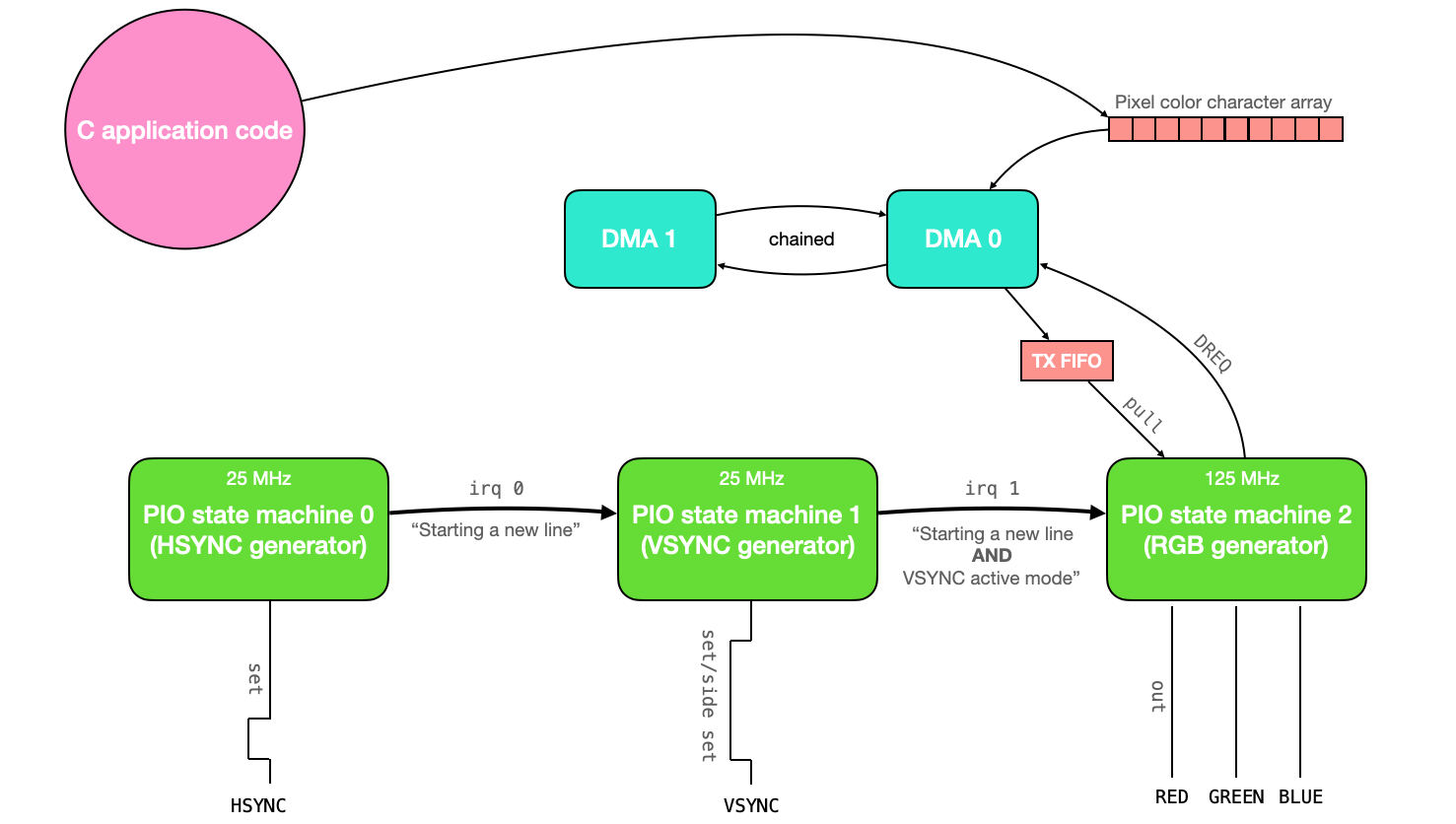

 *  This code uses one DMA channel to send pixel data to a PIO state machine
 *  that is driving the VGA display, and a second DMA channel to reconfigure
 *  and restart the first. As such, changing any value in the pixel color
 *  array will be automatically reflected on the VGA display screen.
 *
 *  To help with this, I have included a function called drawPixel which takes,
 *  as arguments, a VGA x-coordinate (int), a VGA y-coordinate (int), and a
 *  pixel color (char). Only 3 bits are used for RGB, so there are only 8 possible
 *  colors. If you keep all of the code above line 200, this interface will work.
 *
 */
#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/pio.h"
#include "hardware/dma.h"
// Our assembled programs:
// Each gets the name <pio_filename.pio.h>
#include "hsync.pio.h"
#include "vsync.pio.h"
#include "rgb.pio.h"


// VGA timing constants
#define H_ACTIVE   655    // (active + frontporch - 1) - one cycle delay for mov
#define V_ACTIVE   479    // (active - 1)
#define RGB_ACTIVE 319    // (horizontal active)/2 - 1
// #define RGB_ACTIVE 639 // change to this if 1 pixel/byte

// Length of the pixel array, and number of DMA transfers
#define TXCOUNT 153600 // Total pixels/2 (since we have 2 pixels per byte)

// Pixel color array that is DMA's to the PIO machines and
// a pointer to the ADDRESS of this color array.
// Note that this array is automatically initialized to all 0's (black)
unsigned char vga_data_array[TXCOUNT];
char * address_pointer = &vga_data_array[0] ;

// Give the I/O pins that we're using some names that make sense
#define HSYNC     16
#define VSYNC     17
#define RED_PIN   18
#define GREEN_PIN 19
#define BLUE_PIN  20

// We can only produce 8 colors, so let's give them readable names
#define BLACK   0
#define RED     1
#define GREEN   2
#define YELLOW  3
#define BLUE    4
#define MAGENTA 5
#define CYAN    6
#define WHITE   7


// A function for drawing a pixel with a specified color.
// Note that because information is passed to the PIO state machines through
// a DMA channel, we only need to modify the contents of the array and the
// pixels will be automatically updated on the screen.
void drawPixel(int x, int y, char color) {
    // Range checks
    if (x > 639) x = 639 ;
    if (x < 0) x = 0 ;
    if (y < 0) y = 0 ;
    if (y > 479) y = 479 ;

    // Which pixel is it?
    int pixel = ((640 * y) + x) ;

    // Is this pixel stored in the first 3 bits
    // of the vga data array index, or the second
    // 3 bits? Check, then mask.
    if (pixel & 1) {
        vga_data_array[pixel>>1] |= (color << 3) ;
    }
    else {
        vga_data_array[pixel>>1] |= (color) ;
    }
}

int main() {

    // Initialize stdio
    stdio_init_all();

    // Choose which PIO instance to use (there are two instances, each with 4 state machines)
    PIO pio = pio0;

    // Our assembled program needs to be loaded into this PIO's instruction
    // memory. This SDK function will find a location (offset) in the
    // instruction memory where there is enough space for our program. We need
    // to remember these locations!
    //
    // We only have 32 instructions to spend! If the PIO programs contain more than
    // 32 instructions, then an error message will get thrown at these lines of code.
    //
    // The program name comes from the .program part of the pio file
    // and is of the form <program name_program>
    uint hsync_offset = pio_add_program(pio, &hsync_program);
    uint vsync_offset = pio_add_program(pio, &vsync_program);
    uint rgb_offset = pio_add_program(pio, &rgb_program);

    // Manually select a few state machines from pio instance pio0.
    uint hsync_sm = 0;
    uint vsync_sm = 1;
    uint rgb_sm = 2;

    // Call the initialization functions that are defined within each PIO file.
    // Why not create these programs here? By putting the initialization function in
    // the pio file, then all information about how to use/setup that state machine
    // is consolidated in one place. Here in the C, we then just import and use it.
    hsync_program_init(pio, hsync_sm, hsync_offset, HSYNC);
    vsync_program_init(pio, vsync_sm, vsync_offset, VSYNC);
    rgb_program_init(pio, rgb_sm, rgb_offset, RED_PIN);


    ////////////////////////////////////////////////////////////////////////////////////////////
    // ===========================-== DMA Data Channels ========================================
    ////////////////////////////////////////////////////////////////////////////////////////////

    // DMA channels - 0 sends color data, 1 reconfigures and restarts 0
    int rgb_chan_0 = 0;
    int rgb_chan_1 = 1;

    // Channel Zero (sends color data to PIO VGA machine)
    dma_channel_config c0 = dma_channel_get_default_config(rgb_chan_0);  // default configs
    channel_config_set_transfer_data_size(&c0, DMA_SIZE_8);              // 8-bit txfers
    channel_config_set_read_increment(&c0, true);                        // yes read incrementing
    channel_config_set_write_increment(&c0, false);                      // no write incrementing
    channel_config_set_dreq(&c0, DREQ_PIO0_TX2) ;                   // DREQ_PIO0_TX2 pacing (FIFO)
    channel_config_set_chain_to(&c0, rgb_chan_1);                        // chain to other channel

    dma_channel_configure(
        rgb_chan_0,                 // Channel to be configured
        &c0,                        // The configuration we just created
        &pio->txf[rgb_sm],          // write address (RGB PIO TX FIFO)
        &vga_data_array,            // The initial read address (pixel color array)
        TXCOUNT,                    // Number of transfers; in this case each is 1 byte.
        false                       // Don't start immediately.
    );

    // Channel One (reconfigures the first channel)
    dma_channel_config c1 = dma_channel_get_default_config(rgb_chan_1);  // default configs
    channel_config_set_transfer_data_size(&c1, DMA_SIZE_32);             // 32-bit txfers
    channel_config_set_read_increment(&c1, false);                       // no read incrementing
    channel_config_set_write_increment(&c1, false);                      // no write incrementing
    channel_config_set_chain_to(&c1, rgb_chan_0);                        // chain to other channel

    dma_channel_configure(
        rgb_chan_1,                         // Channel to be configured
        &c1,                                // The configuration we just created
        &dma_hw->ch[rgb_chan_0].read_addr,  // Write address (channel 0 read address)
        &address_pointer,                   // Read address (POINTER TO AN ADDRESS)
        1,                                  // Number of transfers, in this case each is 4 byte
        false                               // Don't start immediately.
    );

    ////////////////////////////////////////////////////////////////////////////////////////////
    ////////////////////////////////////////////////////////////////////////////////////////////

    // Initialize PIO state machine counters. This passes the information to the state machines
    // that they retrieve in the first 'pull' instructions, before the .wrap_target directive
    // in the assembly. Each uses these values to initialize some counting registers.
    pio_sm_put_blocking(pio, hsync_sm, H_ACTIVE);
    pio_sm_put_blocking(pio, vsync_sm, V_ACTIVE);
    pio_sm_put_blocking(pio, rgb_sm, RGB_ACTIVE);


    // Start the two pio machine IN SYNC
    // Note that the RGB state machine is running at full speed,
    // so synchronization doesn't matter for that one. But, we'll
    // start them all simultaneously anyway.
    pio_enable_sm_mask_in_sync(pio, ((1u << hsync_sm) | (1u << vsync_sm) | (1u << rgb_sm)));

    // Start DMA channel 0. Once started, the contents of the pixel color array
    // will be continously DMA's to the PIO machines that are driving the screen.
    // To change the contents of the screen, we need only change the contents
    // of that array.
    dma_start_channel_mask((1u << rgb_chan_0)) ;


    ////////////////////////////////////////////////////////////////////////////////////////////
    // ===================================== An Example ========================================
    ////////////////////////////////////////////////////////////////////////////////////////////
    //
    // The remainder of this program is simply an example to show how to use the VGA system.
    // This particular example just produces a diagonal array of colors on the VGA screen.
    while (true) {

        int x = 0 ; // VGA x coordinate
        int y = 0 ; // VGA y coordinate

        // Array of colors, and a variable that we'll use to index into the array
        char colors [8] = {BLACK, RED, GREEN, YELLOW, BLUE, MAGENTA, CYAN, WHITE} ;
        int index = 0;

        // A couple of counters
        int xcounter = 0;
        int ycounter = 0;

        for (y=0; y<480; y++) {                     // For each y-coordinate . . .
            if (ycounter==60) {                     //   If the y-counter is 60 . . .
                ycounter = 0 ;                      //     Zero the counter
                index = (index+1)%8 ;               //     Increment the color index
            }                                       //
            ycounter +=1 ;                          //   Increment the y-counter
            for (x=0; x<640; x++) {                 //   For each x-coordinate . . .
                if (xcounter == 80) {               //     If the x-counter is 80 . . .
                    xcounter = 0;                   //        Zero the x-counter
                    index = (index + 1)%8 ;         //        Increment the color index
                }                                   //
                xcounter += 1 ;                     //     Increment the x-counter
                drawPixel(x, y, colors[index]) ;    //     Draw a pixel to the screen
            }
        }
    }
}
